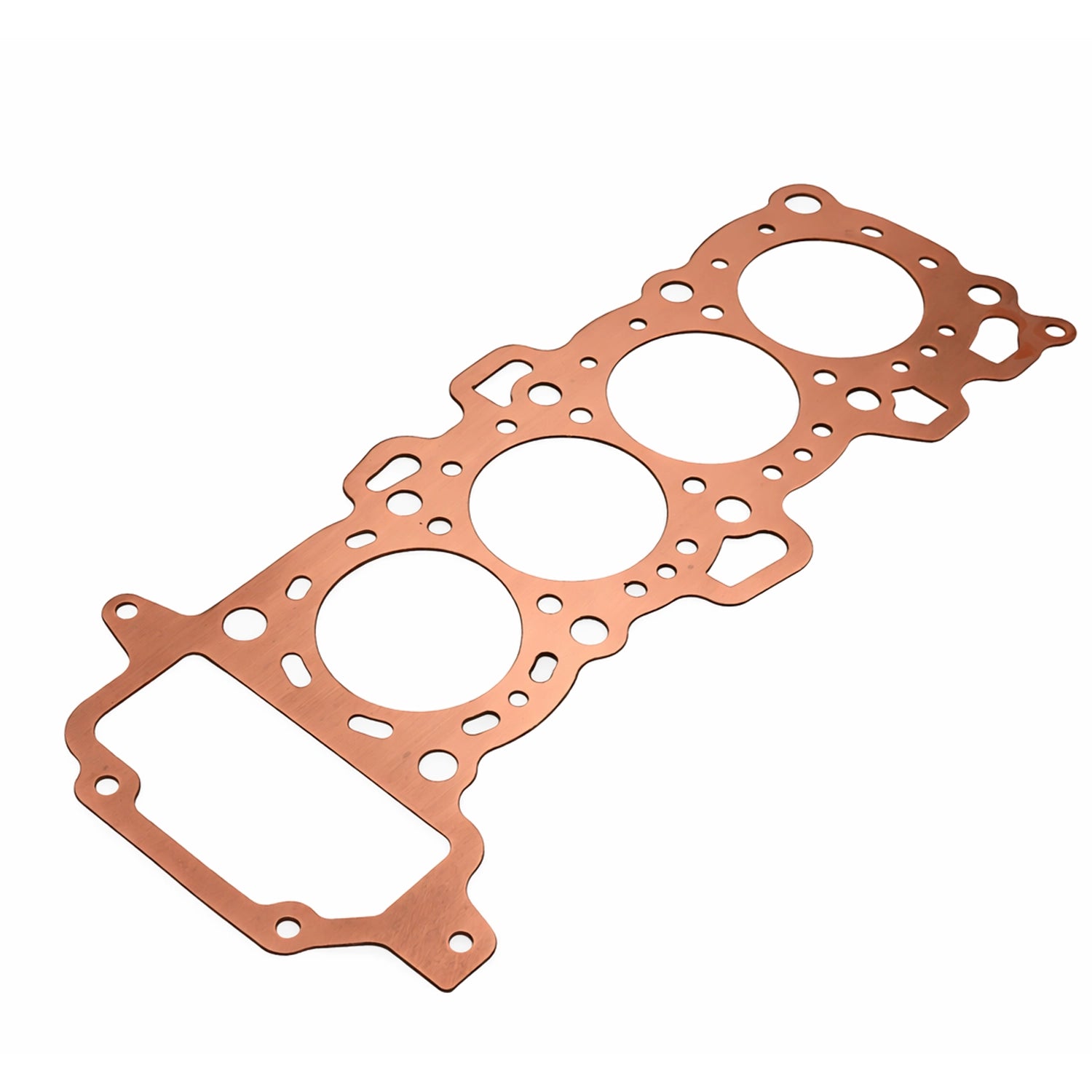

Nissan Micra K11 CG Decompression Plate

Designed for turbocharged and supercharged Nissan Micra K11 engine builds, this decompression plate provides a straightforward method of reducing the engine’s static compression ratio in preparation for increased boost pressure.

Manufactured from solid copper at a thickness of 1.2mm, the plate increases the distance between the cylinder head and engine block. This enlarges the combustion chamber volume and lowers the compression ratio, helping provide additional detonation resistance on correctly configured forced-induction engines.

Features

• Designed for Nissan Micra K11 CG-series engines
• Suitable for turbocharged and supercharged applications
• Helps reduce the engine’s static compression ratio
• Solid-copper construction
• 1.2mm material thickness
• Precision manufactured for accurate alignment
• Intended for performance and motorsport engine builds

Professional Installation Required

Installation must be carried out by a competent professional with experience in modified engines. The cylinder head and engine block sealing surfaces must be inspected and prepared correctly before installation.

The resulting compression ratio will depend on the engine specification, combustion-chamber volume, gasket arrangement and any previous machining of the cylinder head or block. These measurements should be confirmed before installation to ensure the finished compression ratio is suitable for the intended boost pressure and fuel.

Important Information

A decompression plate alone does not make an otherwise standard engine suitable for forced induction. Correct ECU calibration, fuel delivery, ignition timing, boost control and supporting modifications remain essential.

This component is intended for modified, competition and motorsport engines. The installer and vehicle owner are responsible for confirming its suitability for the specific engine build.
