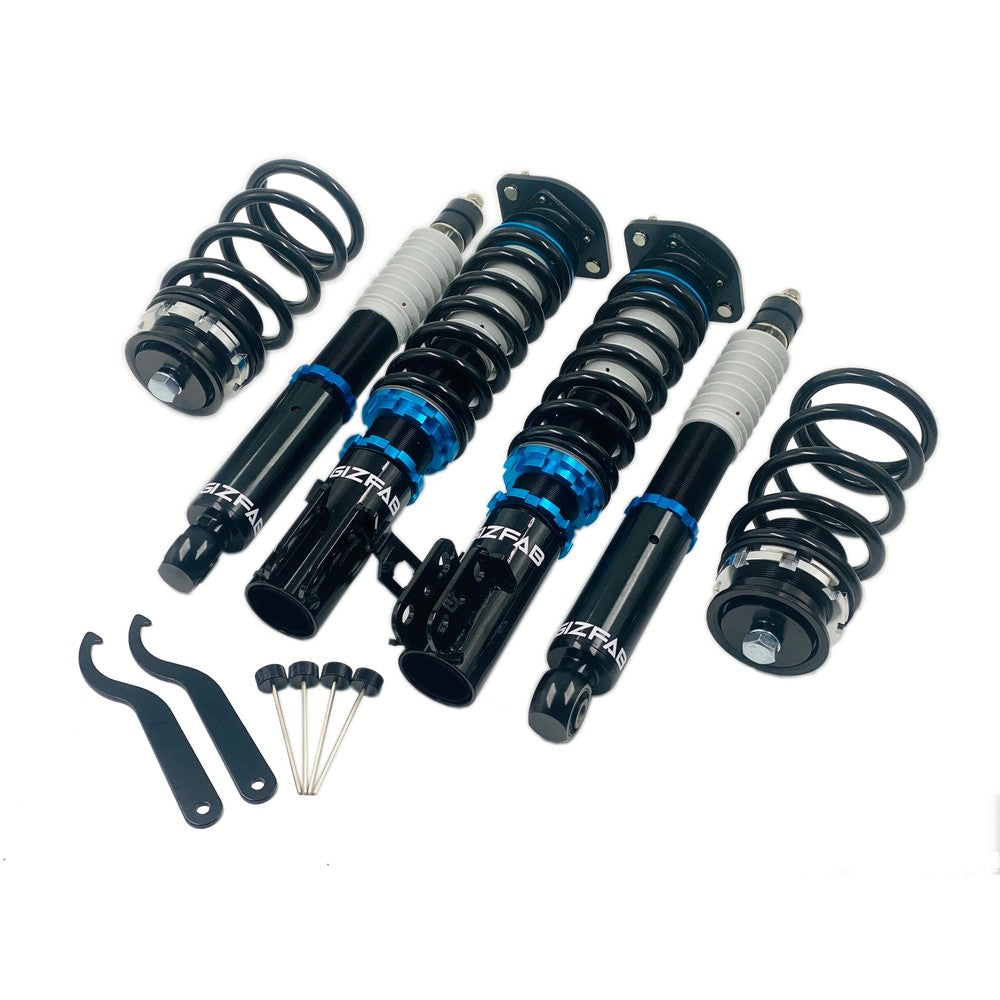

Nissan Micra K11 Adjustable Coilovers

Developed as GizFab's own coilover solution for the Nissan Micra K11 chassis, these adjustable coilovers offer a significant improvement in suspension control, handling and adjustability over the factory suspension.

They are also the coilover platform used on our own Nissan Micra K11 Time Attack car, giving us first-hand experience with the suspension both on and off the circuit.

With 32 levels of damping adjustment, adjustable ride height and multiple spring rate options, the kit can be specified to suit anything from a daily-driven road car through to a dedicated track build.

Features

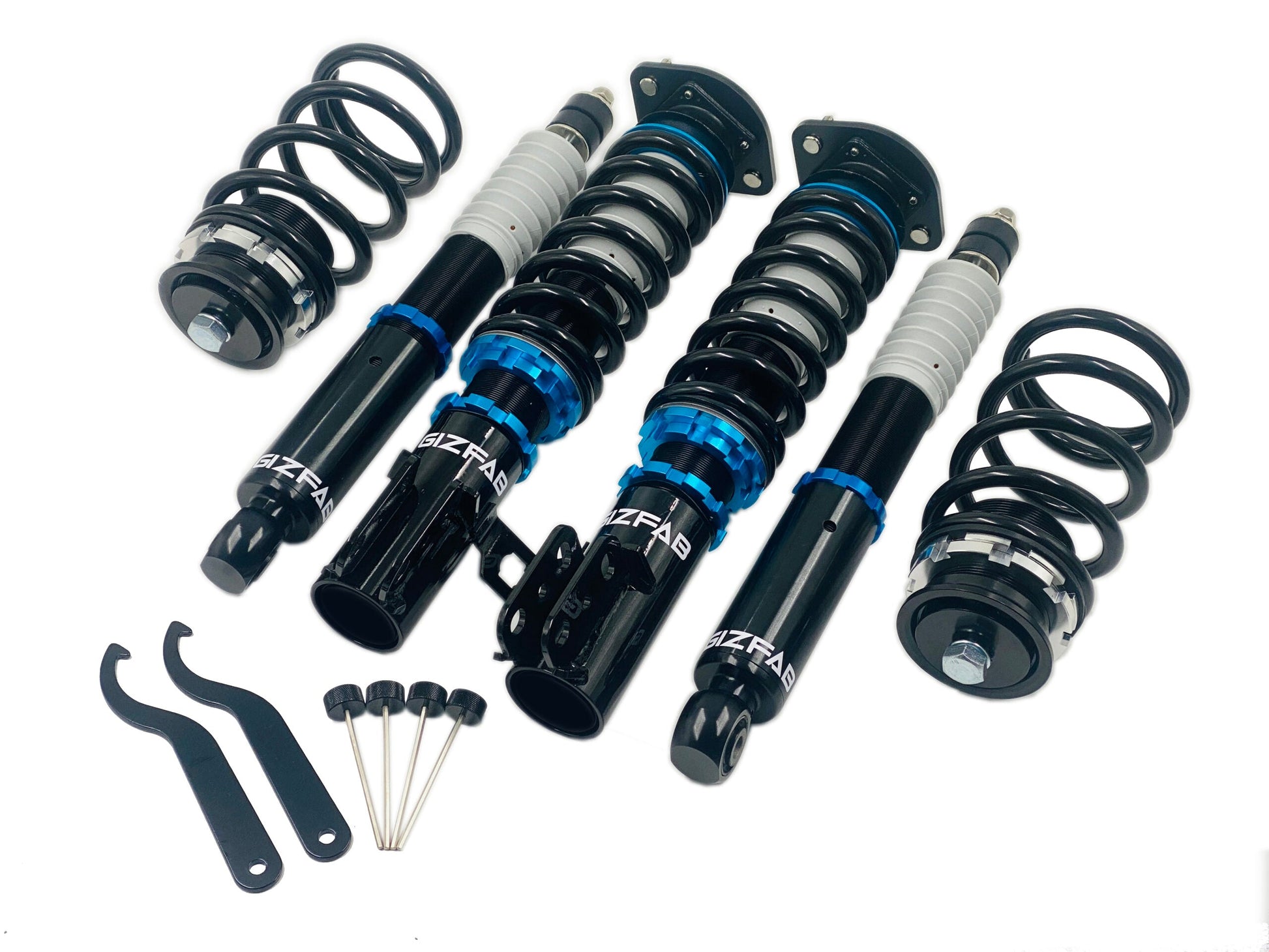

• GizFab Specification K11 Coilover Kit
• Monotube Damper Design
• 32 Levels of Damping Adjustment
• Adjustable Ride Height
• Dual-Platform Front Damper Design
• Multiple Spring Rate Options
• Three Setup Types Available
• Springs Manufactured to SAE 9254 Standard
• Developed for the Nissan Micra K11 Chassis
• Used on Our Own Time Attack K11
• 12-Month Warranty

Dual-Platform Front Dampers

The front dampers feature a dual-platform design, allowing ride height to be adjusted independently rather than relying solely on spring platform adjustment.

This provides greater flexibility when setting the vehicle's ride height while helping to retain the intended spring preload and available damper travel.

Choose Your Setup

Rather than supplying a single spring rate for every application, we offer the coilovers in different configurations depending on how the vehicle will actually be used.

STREET – 5kg/mm Front / 3kg/mm Rear

Our recommended setup for predominantly road-driven K11s.

The Street specification provides a substantial improvement in body control and handling compared with the factory suspension while retaining a more sensible level of compliance for regular road use.

Ideal for daily drivers, fast-road cars and customers wanting a lowered, more responsive K11 without moving to an excessively stiff track-focused setup.

TRACK – 7kg/mm Front / 5kg/mm Rear

A considerably firmer setup intended for cars which see regular circuit use.

The increased spring rates provide greater control during hard cornering, braking and direction changes, reducing body movement and providing a more direct response from the chassis.

This setup can still be driven on the road, but some customers may find the 7/5 spring rates too harsh for regular road use, particularly on poor road surfaces.

32-Way Damping Adjustment

Each setup features 32 levels of damping adjustment, allowing the suspension characteristics to be fine-tuned to suit the vehicle, driver and conditions.

This gives you the flexibility to alter the damping as your vehicle develops rather than being restricted to a fixed damper specification.

Installation & Setup

Coilover installation alters the vehicle's suspension geometry and ride height. We strongly recommend professional installation followed by a full wheel alignment.

Vehicles which are significantly lowered may require additional suspension components or geometry correction depending on the desired ride height and intended use.

12-Month Warranty

Supplied with a 12-month warranty against manufacturing defects.

The warranty does not cover normal wear and tear, accident or impact damage, corrosion caused by inadequate maintenance, incorrect installation, misuse or damage resulting from operating the suspension outside its intended adjustment range.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
