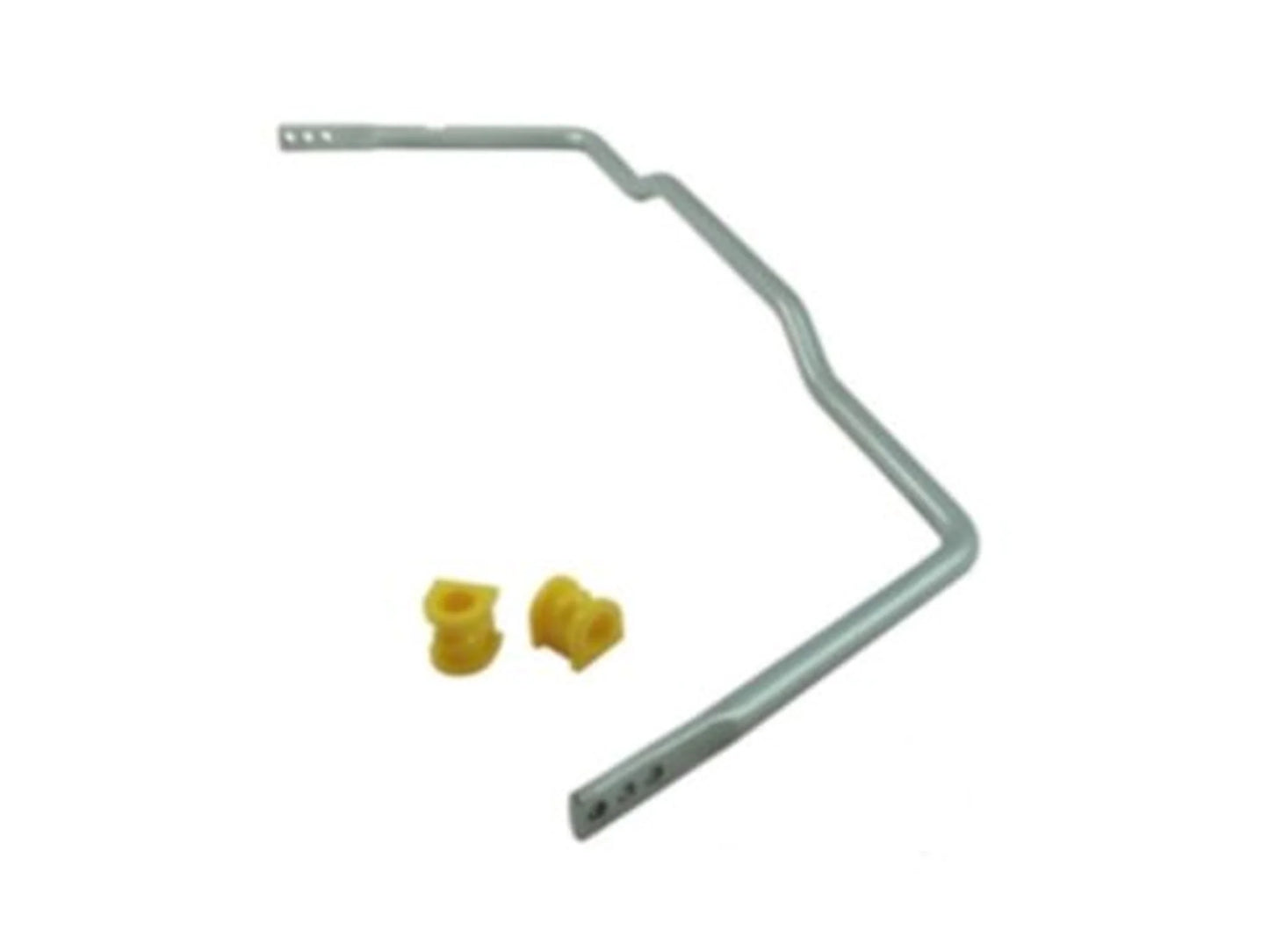

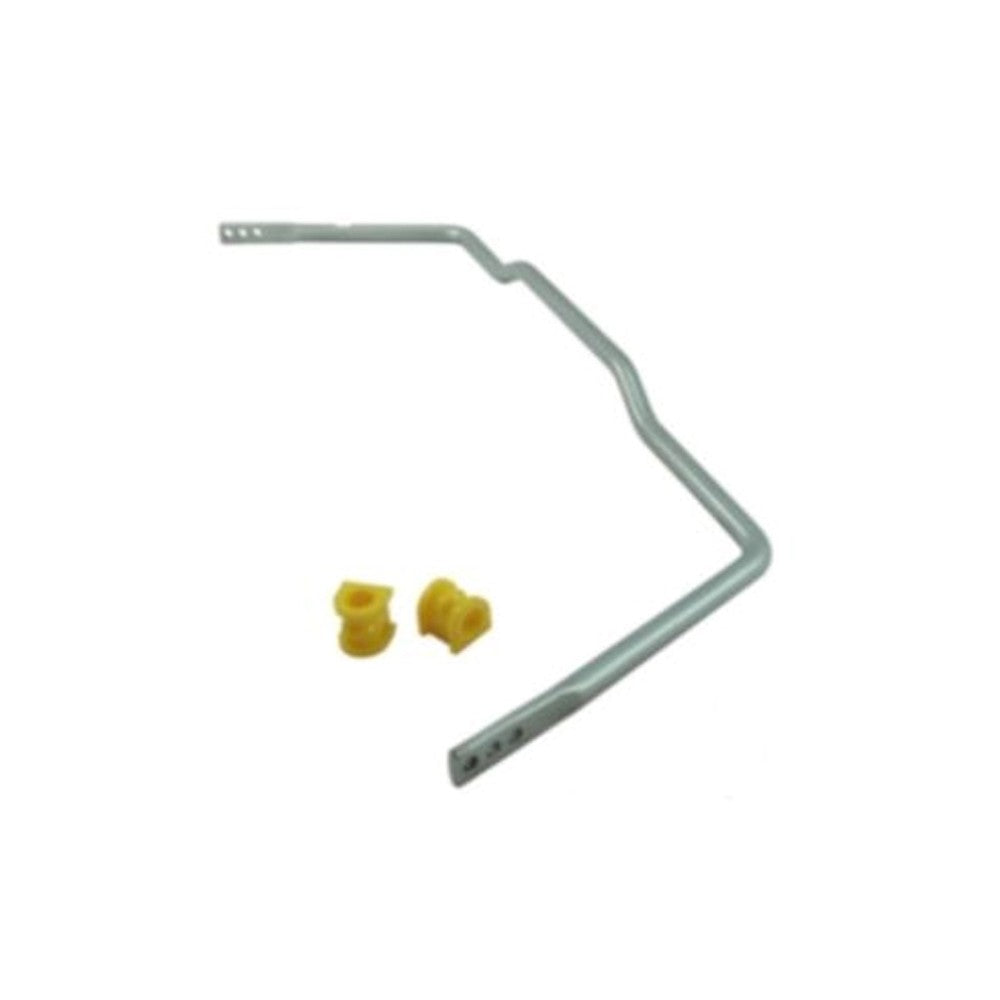

Nissan Micra K11 Whiteline 20mm Adjustable Rear Anti-Roll Bar

The Whiteline 20mm Adjustable Rear Anti-Roll Bar is one of the most effective handling upgrades available for the Nissan Micra K11, designed to increase rear roll stiffness, reduce body roll and provide greater control over the vehicle's handling balance.

Featuring 3-point adjustment, the bar allows the effective stiffness to be changed to suit the vehicle, tyres, suspension setup and driver's preference without needing to replace the anti-roll bar itself.

Ideal for road, fast-road and track-focused K11s where improved body control and a more responsive chassis are required.

Key Features

• 20mm Rear Anti-Roll Bar
• 3-Point Adjustable
• Increased Rear Roll Stiffness
• Reduces Body Roll
• Helps Improve Chassis Response
• Allows Handling Balance to Be Fine-Tuned
• High-Quality Steel Construction
• Durable Powder-Coated Finish
• High-Performance Synthetic Elastomer Bushes
• Bolt-On Kit
• Suitable for Road, Fast-Road & Track Applications

What Does a Rear Anti-Roll Bar Do?

During cornering, weight transfers towards the outside of the vehicle and the body naturally tries to roll.

An anti-roll bar links the suspension movement on the left and right sides of the vehicle, resisting the difference in suspension movement between them.

Increasing rear roll stiffness helps keep the vehicle flatter during cornering and changes the way lateral load is distributed between the front and rear tyres.

On a front-wheel-drive vehicle such as the K11, increasing rear roll stiffness can help reduce the chassis' natural tendency towards understeer, making the car feel more responsive and willing to rotate into a corner.

3-Point Adjustable

One of the biggest advantages of the Whiteline rear anti-roll bar is its 3-point adjustment.

Rather than being limited to one fixed stiffness, the effective lever length of the anti-roll bar can be altered by changing the mounting position.

This allows you to select between:

Softer Setting
Less aggressive increase in rear roll stiffness. A good starting point for road use or drivers wanting a more subtle change in handling balance.

Middle Setting
A balanced compromise between increased rear response and overall stability.

Stiffer Setting
Provides the greatest increase in effective rear roll stiffness and a more noticeable change in handling balance. Better suited to performance and track-focused setups.

The adjustment means the same bar can be tuned as the rest of the vehicle develops.

Why Fit an Adjustable Rear Anti-Roll Bar?

Suspension setup isn't simply about fitting the stiffest components available.

The balance between the front and rear suspension has a significant influence on how a vehicle behaves when approaching and exceeding the limits of grip.

The Whiteline adjustable rear bar gives you another useful tuning tool for controlling that balance.

Depending on the complete vehicle setup, benefits can include:

• Reduced Body Roll
• Sharper Cornering Response
• More Responsive Turn-In
• Reduced Understeer
• Increased Rear Chassis Response
• More Predictable Suspension Behaviour
• Ability to Fine-Tune Front-to-Rear Handling Balance

The exact effect will depend on the tyres, springs, dampers, alignment, ride height and other suspension modifications fitted to the vehicle.

Great Addition to a Lowered K11

The rear anti-roll bar can be used on otherwise relatively standard cars, but it is also an excellent addition to K11s already fitted with:

• Lowering Springs
• Performance Dampers
• Adjustable Coilovers
• Uprated Suspension Bushes
• Performance Tyres
• Adjustable Suspension Arms

Rather than simply increasing spring rates to control body movement, an anti-roll bar allows additional control of roll stiffness during cornering.

High-Quality Construction

Whiteline anti-roll bars are manufactured from high-grade steel and finished with a durable powder coating to provide protection against corrosion and everyday road use.

The kit is supplied with high-performance synthetic elastomer mounting bushes, providing a positive mounting arrangement while retaining some isolation compared with completely rigid mounting solutions.

Installation

The Whiteline rear anti-roll bar is supplied as a bolt-on kit designed for installation using the appropriate mounting locations and supplied components.

Professional installation is recommended.

Following installation, all mounting hardware should be correctly tightened and checked periodically, particularly after the first few journeys and on vehicles regularly used for track or competition driving.

The anti-roll bar should also be checked throughout the suspension's operating range to ensure there is no unwanted contact or interference with surrounding components.

Choosing Your Adjustment

If you're unsure where to start, we recommend beginning with the softest setting and evaluating the vehicle before progressively increasing rear roll stiffness.

Changing anti-roll bar stiffness can noticeably alter the handling balance of the vehicle.

Moving to a stiffer rear setting may make the vehicle more willing to rotate, particularly during abrupt steering inputs, trail braking or lift-off situations.

The stiffest setting is not automatically the fastest or best setting.

The correct position depends on the complete vehicle setup, tyre choice, road or circuit conditions and driver preference.

Important Handling Notice

Increasing rear roll stiffness changes the handling characteristics of the vehicle.

At or beyond the limits of grip, a more aggressive rear anti-roll bar setting can reduce understeer and increase the tendency for the rear of the vehicle to rotate.

Drivers should familiarise themselves with the changed handling characteristics progressively and in an appropriate environment.

For track and competition vehicles, anti-roll bar adjustment should ideally form part of a complete suspension and geometry setup rather than being considered in isolation.
