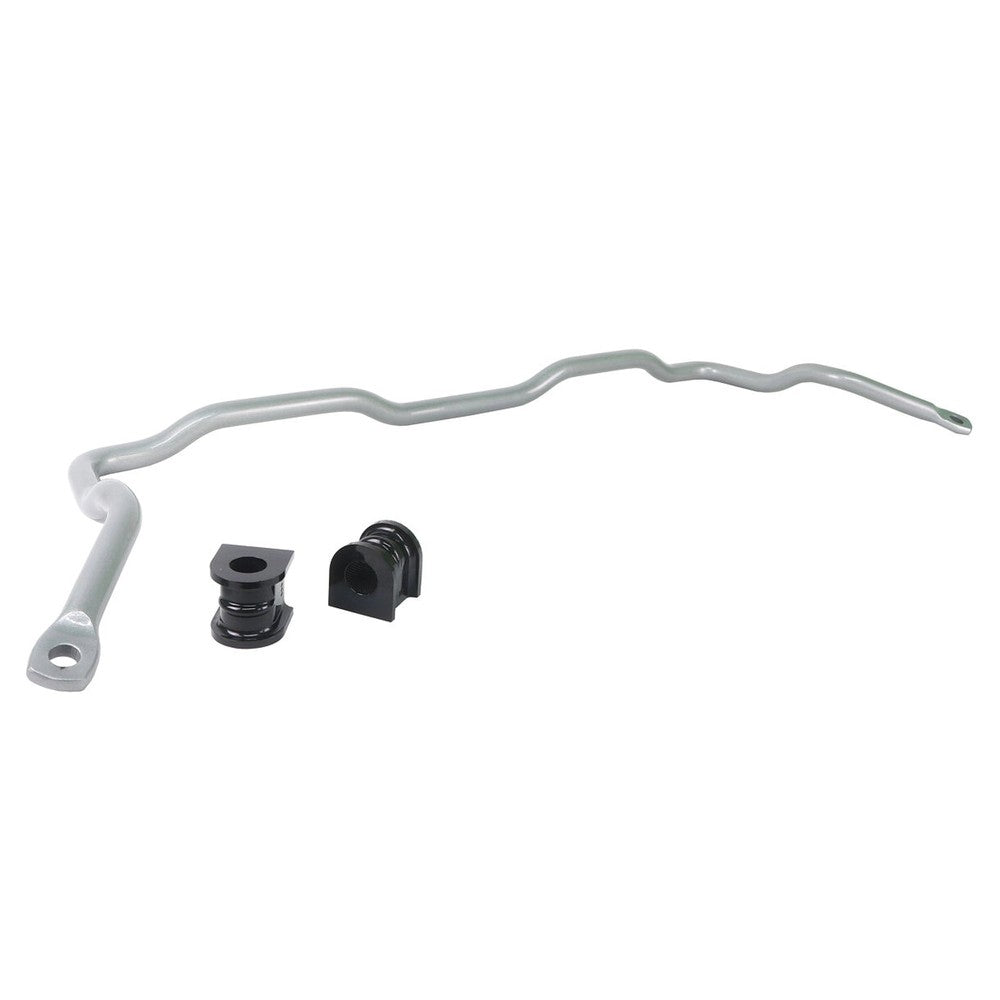

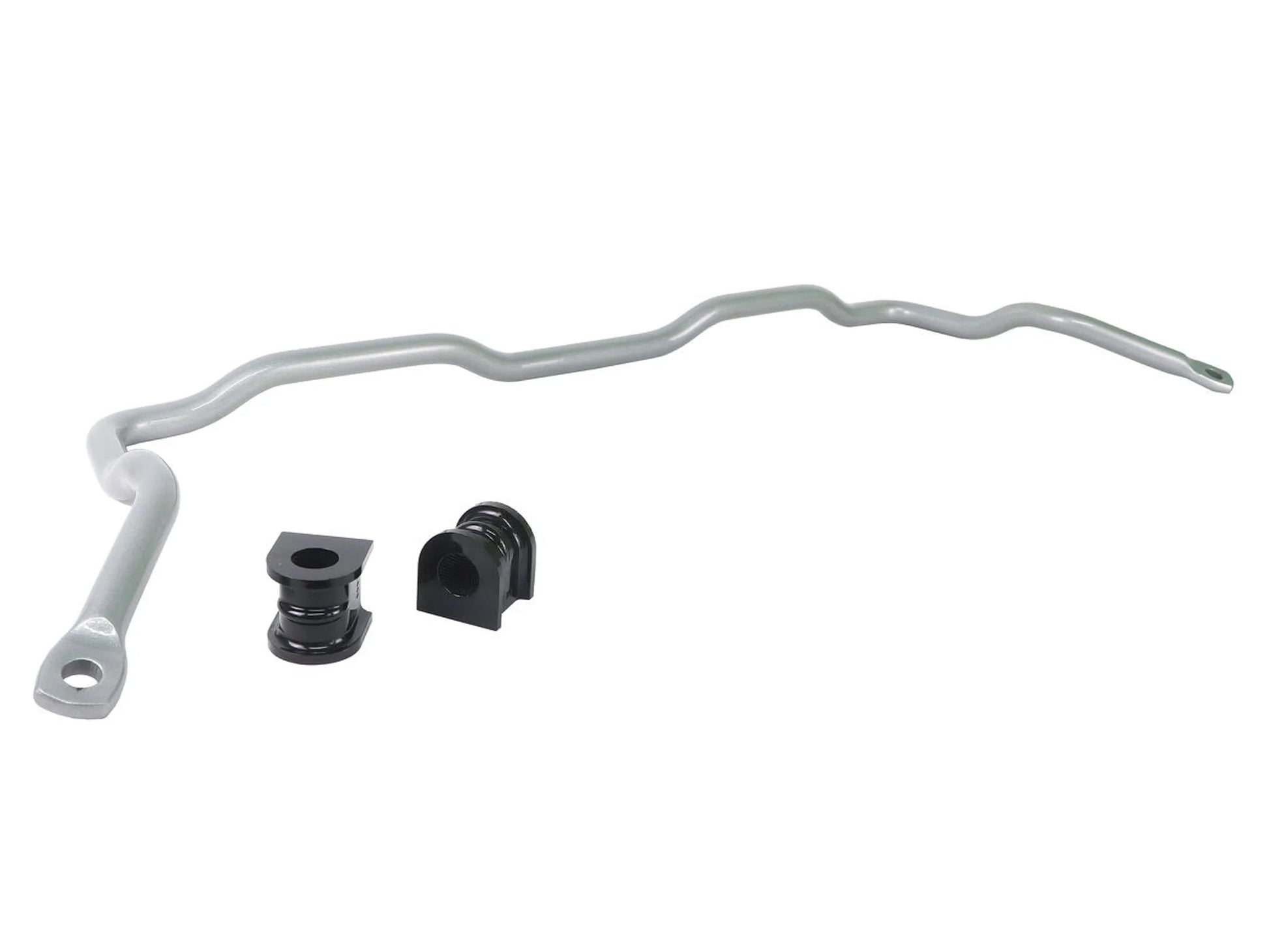

Nissan Micra K11 Whiteline 22mm Front Anti-Roll Bar – Non-Adjustable

The Whiteline 22mm Front Anti-Roll Bar is a performance suspension upgrade for the Nissan Micra K11, designed to increase front roll stiffness, reduce body roll and provide greater control of the front suspension during cornering.

Manufactured from high-quality steel and supplied with Whiteline's performance synthetic elastomer mounting bushes, the 22mm bar provides a substantial upgrade for road, fast-road and track-focused K11s.

Unlike the adjustable Whiteline rear anti-roll bar, this front bar uses a fixed, non-adjustable configuration, providing a predetermined increase in front roll stiffness without requiring any adjustment.

Key Features

• 22mm Front Anti-Roll Bar
• Non-Adjustable / Fixed Rate
• Increased Front Roll Stiffness
• Reduced Body Roll
• Improved Front Suspension Control
• High-Quality Steel Construction
• Durable Powder-Coated Finish
• Performance Synthetic Elastomer Mounting Bushes
• Bolt-On Suspension Upgrade
• Suitable for Road, Fast-Road & Track Applications
• Designed for Nissan Micra K11

What Does an Anti-Roll Bar Do?

During cornering, weight transfers towards the outside of the vehicle and the body naturally tries to roll.

The anti-roll bar links the suspension movement on the left and right sides of the vehicle, resisting the difference in movement between them.

Increasing anti-roll bar stiffness therefore increases the suspension's resistance to body roll during cornering.

The 22mm Whiteline front bar increases front roll stiffness, helping keep the chassis flatter and providing greater control of the front suspension during changes of direction.

Why Upgrade the Front Anti-Roll Bar?

The front tyres on a K11 have quite a lot to deal with.

They are responsible for:

• Steering
• Braking
• Transmitting Engine Torque
• Controlling the Majority of the Vehicle's Cornering Load

Controlling excessive front suspension movement can help make the vehicle feel more composed and responsive during enthusiastic driving.

Potential benefits include:

• Reduced Body Roll
• Improved Front Suspension Control
• More Immediate Response to Direction Changes
• More Consistent Suspension Behaviour
• Increased Chassis Stability
• Improved Driver Feedback

The exact effect will depend on the complete suspension and tyre setup fitted to the vehicle.

Front vs Rear Anti-Roll Bar

It is important to understand that increasing the stiffness of the front and rear anti-roll bars can have different effects on the handling balance of the car.

Increasing rear roll stiffness on a front-wheel-drive K11 is commonly used to encourage the car to rotate and reduce its tendency towards understeer.

Increasing front roll stiffness provides additional control of the front suspension and reduces front body roll, but excessive front roll stiffness relative to the rear can also encourage understeer.

For this reason, suspension components should ideally be selected as part of a complete setup rather than simply fitting the stiffest components available.

Works Well as Part of a Complete Suspension Package

The Whiteline 22mm front anti-roll bar can be used as a standalone upgrade, but is particularly well suited to K11s already fitted with performance suspension components such as:

• Lowering Springs
• Adjustable Coilovers
• Uprated Suspension Bushes
• Performance Dampers
• Adjustable Suspension Arms
• Performance Tyres
• Whiteline Adjustable Rear Anti-Roll Bar

Using front and rear anti-roll bars together provides additional scope to develop the overall roll stiffness and handling balance of the vehicle.

Non-Adjustable Design

This particular front anti-roll bar is NON-ADJUSTABLE.

Unlike an adjustable anti-roll bar with multiple drop-link mounting positions, the Whiteline 22mm front bar uses a fixed geometry.

This means there are no alternative stiffness positions to select during setup.

For customers wanting to tune the front-to-rear handling balance, this can instead be achieved through the interaction of the fixed front bar with the suspension setup and, where fitted, an adjustable rear anti-roll bar.

High-Quality Construction

Whiteline anti-roll bars are manufactured from high-grade steel and finished with a durable powder coating to help protect the bar against corrosion and everyday road use.

The kit is supplied with high-performance synthetic elastomer mounting bushes, replacing the corresponding compliant rubber mounting points with components designed for more controlled anti-roll bar operation.

Installation

The Whiteline front anti-roll bar is supplied as a bolt-on suspension upgrade.

Professional installation is recommended.

During installation, the condition of the surrounding suspension components should also be inspected, including:

• Anti-Roll Bar Mounting Points
• Drop Links / Stabiliser Links
• Lower Control Arms
• Bushes
• Ball Joints
• Mounting Hardware

All hardware should be correctly tightened and the anti-roll bar checked for adequate clearance throughout the suspension and steering range.

Suspension Setup

An anti-roll bar should be considered as part of the complete suspension package.

The behaviour of the vehicle will also be influenced by:

• Spring Rates
• Damper Settings
• Ride Height
• Front & Rear Alignment
• Tyre Type
• Tyre Pressures
• Differential Setup
• Front-to-Rear Roll Stiffness Balance

The stiffest suspension setup is not automatically the fastest or best-handling setup.

For track and competition vehicles, anti-roll bar selection should ideally form part of a properly developed suspension and geometry setup.

Important Handling Notice

Increasing front roll stiffness will alter the handling characteristics of the vehicle.

Depending on the complete suspension configuration, a stiffer front anti-roll bar can influence the balance between understeer and oversteer.

Drivers should familiarise themselves with the changed handling characteristics progressively and in an appropriate environment following installation.

Warranty

Whiteline products are supplied subject to the manufacturer's applicable warranty terms and conditions.

Normal wear of bushes, cosmetic deterioration, corrosion resulting from inadequate maintenance, accident or impact damage, incorrect installation, modification, misuse and damage resulting from defective surrounding suspension components are not considered manufacturing defects.

Whiteline is a third-party manufacturer. GizFab Motorsport Developments is an independent retailer and is not affiliated with, sponsored by or endorsed by Whiteline or Nissan Motor Co., Ltd.
