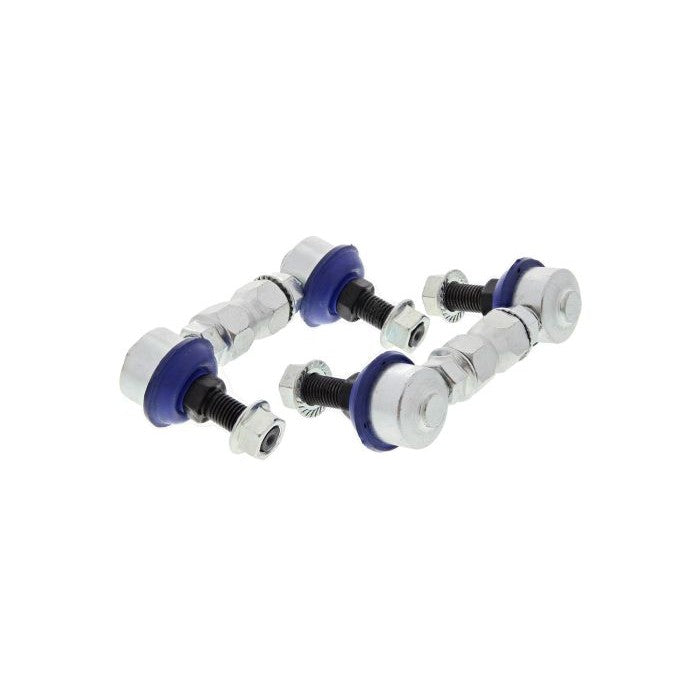

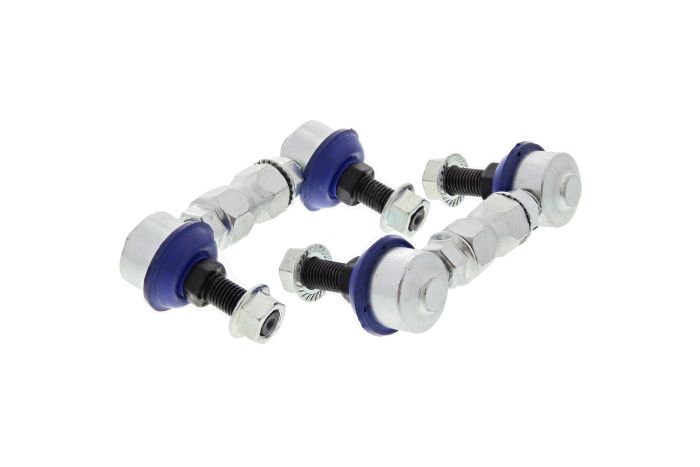

Nissan Micra / March K11 Hardrace Adjustable Reinforced Stabiliser Links – 77-87mm

The Hardrace Adjustable Reinforced Stabiliser Links are a performance upgrade for the Nissan Micra / March K11, providing increased strength together with an adjustable 77-87mm link length.

Also commonly referred to as anti-roll bar drop links or ARB links, these components connect the anti-roll bar to the suspension and play an important role in transferring movement into the anti-roll bar during cornering.

The adjustable design is particularly useful on lowered K11s, allowing the stabiliser link length to be fine-tuned to suit the altered suspension position.

Key Features

• Supplied as a Pair
• Quantity 1 = 2 Stabiliser Links
• Adjustable 77-87mm Length
• Reinforced Construction
• High-Strength Steel
• Tight-Fitting Ball Joint Design
• Designed for Improved Durability
• More Direct Suspension Response
• Allows Anti-Roll Bar Position to Be Fine-Tuned
• Particularly Useful for Lowered Vehicles
• Suitable for Road, Fast-Road & Track Applications

Why Use Adjustable Stabiliser Links?

When a vehicle is lowered, the suspension arms and anti-roll bar no longer necessarily operate at the same angles as they did at the factory ride height.

The standard fixed-length drop links cannot compensate for this change.

An adjustable stabiliser link allows the effective link length to be altered, helping position the anti-roll bar appropriately for the vehicle's new suspension setup.

This can be particularly useful on K11s fitted with:

• Lowering Springs
• Adjustable Coilovers
• Performance Suspension
• Significantly Reduced Ride Heights
• Track-Oriented Suspension Setups

77-87mm Adjustment Range

The links provide an adjustment range of:

Minimum Length: 77mm
Maximum Length: 87mm

This allows the link length to be fine-tuned during suspension setup.

The shortest possible setting is not automatically the best setting for a lowered vehicle.

The correct length should be determined from the actual suspension and anti-roll bar position rather than simply adjusting the links as short as possible.

Reinforced Construction

Hardrace uses high-strength materials and precision joint assemblies to provide a stronger, more direct connection than a worn conventional stabiliser link.

Reducing unwanted movement within the link allows anti-roll bar forces to be transferred more directly through the suspension.

This can provide a more positive and precise feel, particularly when combined with other performance suspension upgrades.

Supplied as a Pair

The advertised price is for TWO stabiliser links.

Quantity 1 = 2x Adjustable Reinforced Stabiliser Links

Vehicle Compatibility

Designed for:

Nissan Micra K11

Nissan March K11

As with any suspension component, please check the existing configuration where the vehicle has previously been modified or fitted with non-standard suspension components.

Installation & Adjustment

Professional installation is recommended.

Both links should be adjusted appropriately for the suspension setup and all locking hardware correctly tightened following adjustment.

The installer should check:

• Anti-Roll Bar Position
• Suspension Clearance
• Link Alignment
• Full Suspension Travel
• Steering Clearance
• Correct Fastener Torque

The links should not be adjusted beyond their intended 77-87mm range.

For heavily modified or competition vehicles, the anti-roll bar and links should ideally be configured as part of the complete suspension setup rather than adjusted in isolation.

Important Suspension Notice

Incorrect stabiliser-link adjustment can place unwanted preload or stress into the anti-roll bar and associated suspension components.

For this reason, adjustment should be carried out by someone familiar with suspension geometry and anti-roll bar setup.

Following installation, all mounting points and locking hardware should be periodically inspected, particularly on vehicles used for track or competition driving.

Warranty

Hardrace products are supplied subject to the manufacturer's applicable warranty terms and conditions.

Normal wear, joint deterioration through use, corrosion resulting from inadequate maintenance, accident or impact damage, incorrect installation, modification, incorrect adjustment and damage caused by surrounding suspension components are not considered manufacturing defects.

Hardrace is a third-party manufacturer. GizFab Motorsport Developments is an independent retailer and is not affiliated with, sponsored by or endorsed by Hardrace or Nissan Motor Co., Ltd.
