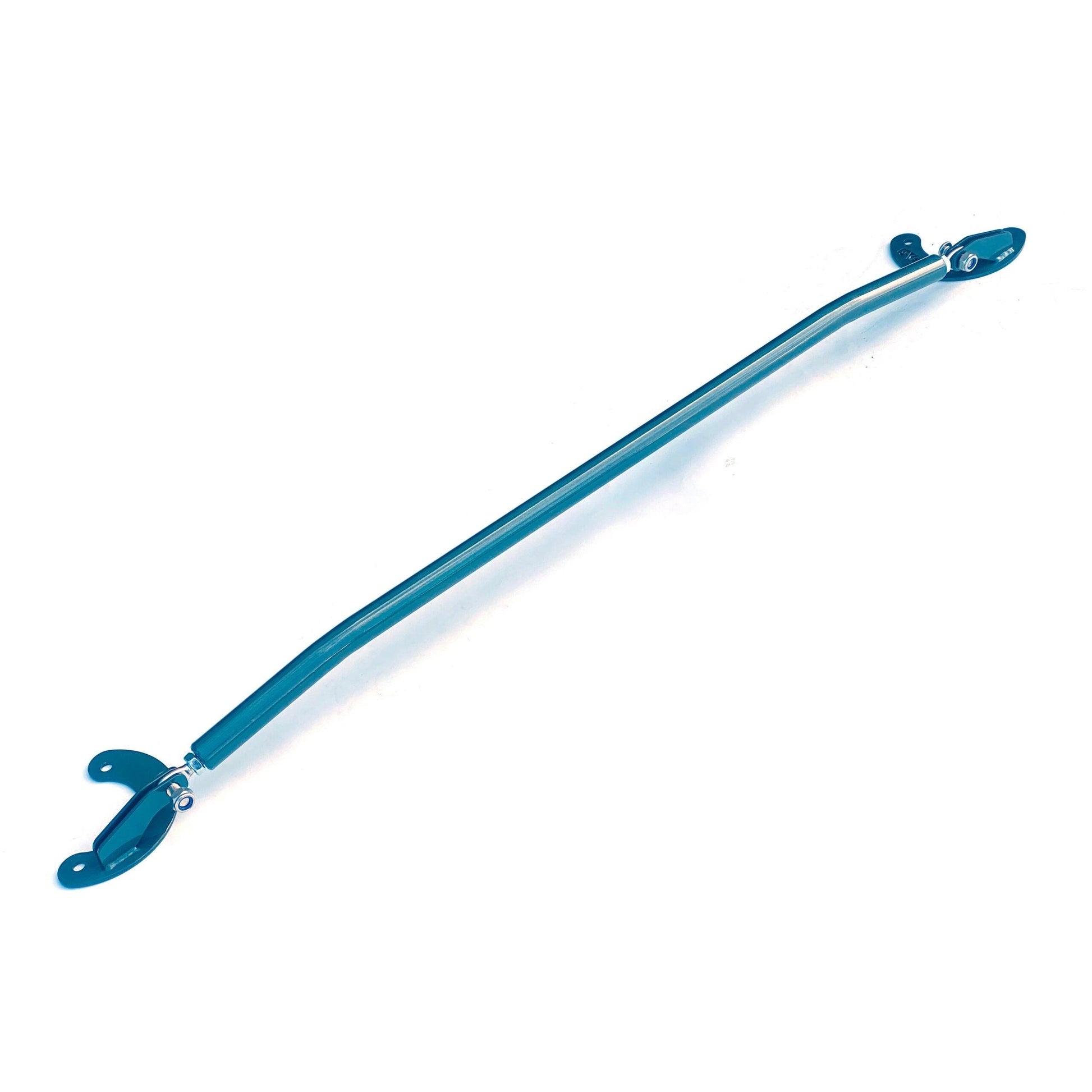

Nissan Micra K11 Front Upper Strut Brace

Designed and manufactured by GizFab, our Nissan Micra K11 Front Upper Brace is designed to increase rigidity across the front of the K11 chassis by linking the two front upper suspension mounting points together.

The brace has been specifically designed around the K11 engine bay, providing clearance for vehicles equipped with Power Steering (PAS), ABS and Air Conditioning, while also clearing the factory Nissan and GA-style air boxes.

Manufactured from steel and precision TIG welded, it's a simple bolt-on chassis upgrade for road, fast-road, track and competition-focused K11s.

Key Features

• Designed & Manufactured by GizFab
• Full Steel Construction
• Precision TIG Welded
• Links the Front Upper Suspension Mounting Points
• Increased Front-End Chassis Rigidity
• Improved Suspension & Steering Feedback
• Clears Power Steering (PAS)
• Clears ABS-Equipped Vehicles
• Clears Air Conditioning (A/C)
• Clears Factory Nissan Air Box
• Clears GA-Style Air Boxes
• Bolt-On Chassis Upgrade
• 12-Month Warranty

Why Fit a Front Upper Brace?

During cornering, braking and changes of direction, loads from the front suspension are transferred into the vehicle's chassis through the suspension mounting points.

The body shell itself has a degree of flexibility.

A front upper brace creates a rigid connection between the left and right upper suspension mounting areas, helping reduce relative movement across the front of the chassis.

Providing a more rigid platform for the suspension to operate from can result in:

• Improved Front-End Response
• More Direct Steering Feedback
• Increased Chassis Rigidity
• More Consistent Suspension Behaviour
• Improved Feel During Direction Changes

The difference will depend on the condition and specification of the vehicle, particularly where other suspension and chassis upgrades are already fitted.

Designed Around the K11 Engine Bay

Rather than simply producing a straight bar between the suspension towers, our brace has been designed around the components commonly found within the K11 engine bay.

The brace provides clearance for vehicles fitted with:

Power Steering (PAS)
Anti-Lock Braking System (ABS)
Air Conditioning (A/C)

It is also designed to clear:

Factory Nissan Air Boxes
GA-Style Air Boxes

This makes the brace suitable for a wide variety of K11 specifications without requiring the removal of useful factory equipment simply to install a chassis brace.

TIG-Welded Steel Construction

The brace uses a full steel construction to provide a strong and rigid connection between the front suspension mounting points.

Each assembly is precision TIG welded for a durable, high-quality construction suitable for modified and performance-focused vehicles.

Great Addition to a Handling-Focused K11

The Front Upper Brace works particularly well alongside other suspension and chassis upgrades such as:

• Coilovers
• Performance Dampers
• Lowering Springs
• Uprated Anti-Roll Bars
• Polyurethane Suspension Bushes
• Adjustable Suspension Components
• Front Lower Brace
• Rear Upper Brace
• Performance Tyres

Upper and lower chassis bracing address different areas of the vehicle, so the Front Upper Brace can be combined with our Front Lower Brace for a more comprehensive approach to reinforcing the K11 front suspension mounting structure.

Installation

The brace is designed as a bolt-on chassis reinforcement component.

Professional installation by a suitably qualified technician is recommended.

Before installation, the suspension mounting points and surrounding bodywork should be inspected for:

• Corrosion
• Cracking
• Accident Damage
• Distortion
• Previous Chassis Repairs

The brace must not be used to force damaged or incorrectly positioned suspension mounting points back into alignment.

All mounting hardware should be correctly tightened before the vehicle is used and periodically inspected thereafter.

Important Compatibility Information

The brace has been designed to clear the factory K11 engine bay equipment and air box configurations stated above.

Clearance cannot be guaranteed with every aftermarket intake system, engine conversion, custom engine mount arrangement or other non-standard engine bay modification.

Where substantial modifications have been made, we recommend checking available clearance before installation.

Important Safety Information

This product is a chassis reinforcement component only.

It is not a structural safety device and must not be used as an anchorage point for harnesses, restraints or other safety equipment.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover cosmetic deterioration, corrosion resulting from inadequate maintenance, incorrect installation, modification, accident or impact damage, misuse or damage resulting from defective or damaged surrounding chassis or suspension components.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
