Nissan Micra K13 HR12 Performance Intake Kit

Upgrade the intake system on your Nissan Micra K13 HR12 3-cylinder with our purpose-designed performance intake kit.

Developed specifically around the K13 engine bay and HR12 engine, the system uses a CAD-designed enlarged intake pipe to provide a less restrictive airflow path, increased induction sound and a clean, purposeful appearance that looks at home in the engine bay.

Unlike many basic aftermarket intake kits, our system also includes a purpose-designed crankcase catch tank to replace the oil separation function incorporated within the original Nissan airbox.

Key Features

• Designed Specifically for the Nissan Micra K13 HR12 3-Cylinder
• CAD-Designed Enlarged Intake System
• SLS 3D-Printed PA12 Nylon Intake Pipe
• Integrated Factory MAF Sensor Mounting
• Purpose-Designed Oil Catch Tank Included
• SLS 3D-Printed PA12 Catch Tank
• 100mm Performance Air Filter
• Silicone Hose Joiners
• Steel Support Bracket
• Stainless Steel Hose Clamps
• Installation Hardware Included
• Increased Induction Sound
• Clean OEM+ Engine Bay Appearance
• Designed & Developed by GizFab Motorsport Developments
• 12-Month Warranty

Designed Specifically for the HR12

This intake has been developed around the HR12 3-cylinder engine found in the Nissan Micra K13.

Rather than adapting a generic length of pipe and universal cone filter to fit the engine bay, the complete intake has been CAD designed around the available space, factory MAF sensor arrangement and crankcase ventilation requirements of the vehicle.

The result is a properly integrated intake package designed specifically for the application.

Enlarged Intake Design

The intake pipe provides an enlarged airflow path compared with the restrictive sections of the original airbox arrangement.

The internal geometry has been designed to provide a smooth transition through the intake and towards the throttle body.

Benefits include:

• Improved Airflow Potential
• Reduced Unnecessary Intake Restriction
• Increased Induction Sound
• More Purposeful Engine Bay Appearance
• Suitable Foundation for Further Performance Modifications

Actual performance gains will depend on the complete engine specification, ECU strategy, exhaust system and other modifications.

No specific horsepower increase is guaranteed from fitting the intake alone.

SLS 3D-Printed PA12 Nylon

Both the intake components and catch tank utilise Selective Laser Sintering (SLS) 3D printing in PA12 nylon.

SLS manufacturing allows us to produce complex, application-specific geometry without the restrictions associated with conventional fabricated intake pipework.

PA12 provides an excellent combination of:

• Strength
• Low Weight
• Temperature Resistance
• Oil & Vapour Resistance
• Dimensional Stability
• Durability

This makes it particularly well suited to components operating within the automotive engine bay.

Integrated MAF Sensor Mounting

The original Mass Air Flow (MAF) sensor mounting is integrated directly into the intake pipe.

This provides a clean installation without requiring a separate bolt-on MAF housing or additional adapter.

The factory MAF sensor is transferred into the new intake arrangement during installation.

⚠️ Handle the MAF Sensor Carefully

The MAF sensor is a sensitive electronic measuring device.

It should be handled carefully during installation and fitted in the correct orientation.

Do not touch or contaminate the sensing element.

Purpose-Designed Catch Tank Included

One of the most important differences between our intake and many basic aftermarket kits is the inclusion of a dedicated crankcase ventilation catch tank.

Why is it needed?

The original Nissan airbox does more than simply hold the air filter.

It also incorporates an internal oil separation function within the crankcase ventilation arrangement.

When the original airbox is removed, this function is removed with it.

Simply fitting a cone filter and intake pipe without considering the crankcase ventilation system can therefore leave an important part of the original arrangement unaccounted for.

Our solution is to incorporate a purpose-designed catch tank as part of the complete intake kit.

What Does the Catch Tank Do?

During normal engine operation, the crankcase ventilation system can carry a mixture of gases and suspended oil vapour.

The catch tank provides an area for this oil vapour to separate and collect rather than simply passing directly through the intake arrangement.

This helps replicate the oil separation function lost when the original airbox is removed.

The catch tank is also manufactured using SLS 3D-printed PA12 nylon, providing a lightweight and oil-resistant solution specifically designed around the K13 engine bay.

Catch Tank Maintenance

The catch tank should be inspected periodically and drained as required.

The amount of oil collected will vary depending on factors including:

• Engine Condition
• Mileage
• Driving Style
• Engine Load
• Oil Level
• Crankcase Blow-By

An unusually large amount of oil accumulation may indicate an underlying engine or crankcase ventilation issue and should be investigated.

100mm Performance Air Filter

The kit includes a 100mm performance air filter, providing a substantial filter area for the enlarged intake arrangement.

The exposed performance filter also provides a considerably more noticeable induction sound compared with the enclosed factory airbox.

Expect a more pronounced intake note during:

• Acceleration
• Larger Throttle Openings
• Higher Engine Speeds

For many customers, the additional induction sound is one of the main attractions of fitting the kit.

Complete Installation Package

This isn't simply an intake pipe and filter.

The kit has been designed as a complete conversion package and includes the supporting components required for installation.

Kit Includes

• SLS PA12 Intake Pipe with Integrated MAF Mounting
• SLS PA12 Catch Tank
• 100mm Performance Air Filter
• Silicone Hose Joiners
• Steel Support Bracket
• Stainless Steel Hose Clamps
• Required Installation Hardware

The original MAF sensor is reused and is not included with the kit.

Installation

Professional installation is recommended.

During installation:

• Ensure the MAF Sensor is Installed Correctly
• Check All Hose Connections
• Ensure Clamps are Secure
• Confirm the Intake Cannot Contact Moving Components
• Check Catch Tank Hose Routing
• Check Bonnet Clearance
• Ensure the Filter is Securely Supported
• Check for Intake / Vacuum Leaks

After installation, allow the engine to idle and check for abnormal running or warning lights before driving the vehicle.

All connections should be inspected again after an appropriate initial running period.

⚠️ HR12 3-Cylinder Fitment

THIS KIT HAS BEEN DESIGNED SPECIFICALLY FOR THE HR12 3-CYLINDER ENGINE.

The wider Nissan HR engine family includes several related engines, including HR15 and HR16 variants.

While these engines share aspects of their basic architecture, differences in:

• Throttle Body Position
• Intake Layout
• Engine Bay Packaging
• Sensor Arrangement
• Hose Routing

mean that this HR12 intake kit cannot be guaranteed to fit HR15, HR16 or other HR-family engines.

If your K13 is fitted with an engine other than the HR12 3-cylinder, please do not assume compatibility based solely on it being part of the HR engine family.

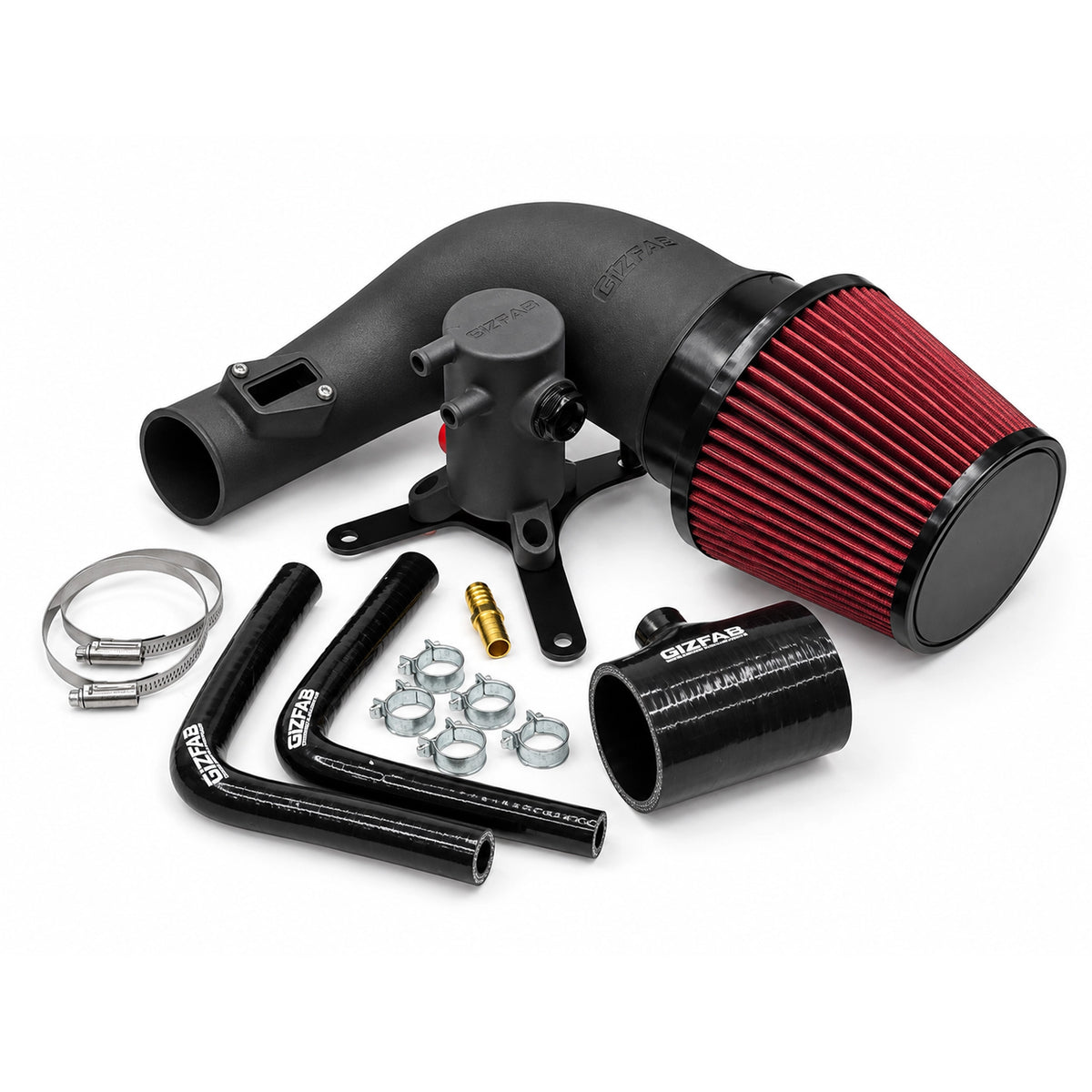

Product Image Disclaimer

The current product image has been AI-generated using an image of the final CAD design as its reference.

It is intended to provide an accurate representation of the overall design and appearance of the finished intake kit.

However, minor differences in:

• Surface Finish
• Texture
• Hardware
• Hose Position
• Component Appearance
• Manufacturing Details

may be present on the final production component.

The AI-generated image will be replaced with photographs of the physical production kit when available.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover incorrect installation, physical damage, modification, contamination, failure to maintain or drain the catch tank, damage caused by defective crankcase ventilation components, incorrect MAF installation, use on an incompatible engine application or failure caused by surrounding components.

Air filters are service components and normal deterioration or contamination through use is not considered a manufacturing defect.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd. Nissan, Micra, March and HR engine designations are used solely for vehicle and engine identification and compatibility purposes.
