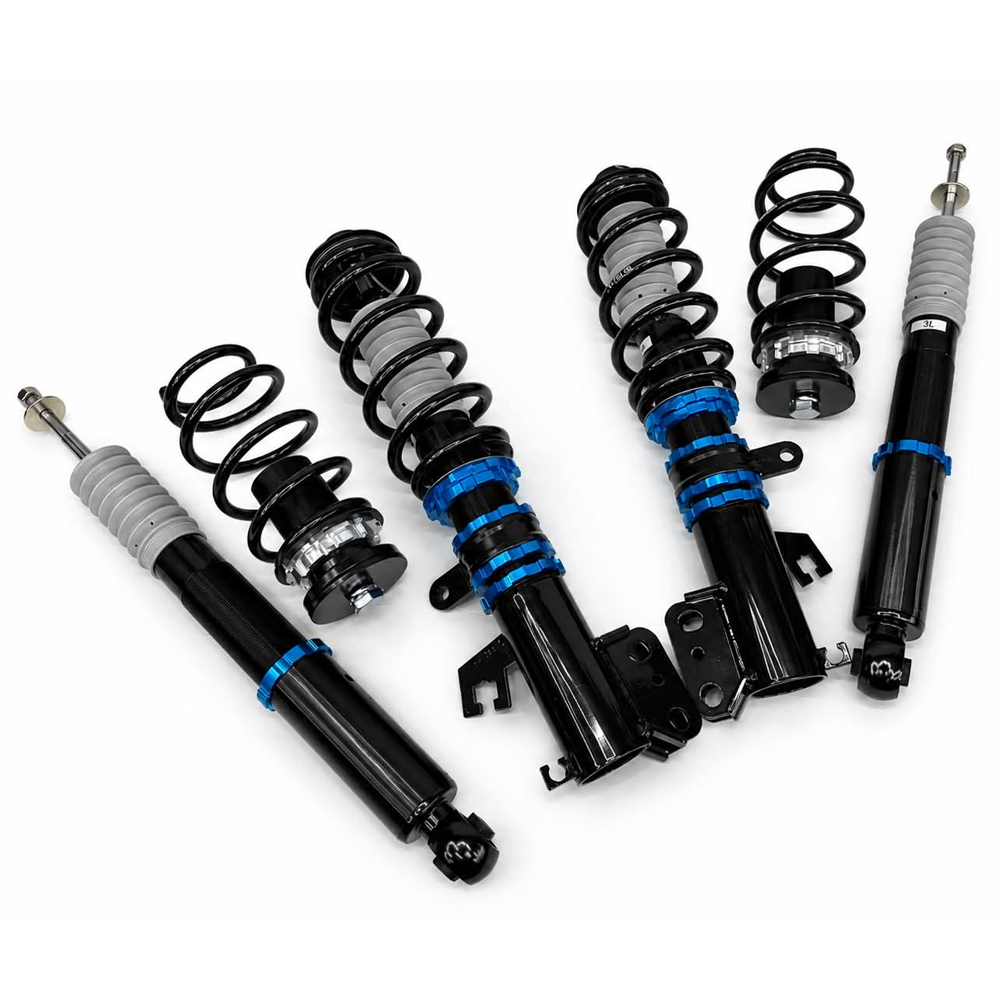

Nissan Micra K13 GizFab Adjustable Coilovers

Upgrade the suspension of your Nissan Micra K13 with our GizFab Adjustable Coilover Kit, designed to provide improved handling, adjustable ride height and a more controlled suspension setup for modified road and performance builds.

With 5kg/mm front and 3kg/mm rear spring rates, this setup provides a firmer, more performance-focused suspension package while remaining suitable for K13s that see regular road use.

Specification

• Designed for the Nissan Micra K13
• Front Spring Rate: 5kg/mm
• Rear Spring Rate: 3kg/mm
• Adjustable Ride Height
• Front Top Mount: Reuses OEM Mount
• Rear Top Mount: Reuses OEM Mount
• Performance-Focused Suspension Setup
• Suitable for Road & Fast-Road Builds
• Suitable for Occasional Track Use
• 12-Month Warranty

5kg/mm Front & 3kg/mm Rear Spring Rates

The K13 kit is supplied with:

Front: 5kg/mm
Rear: 3kg/mm

These spring rates provide a firmer and more controlled suspension setup than the original factory suspension, helping reduce unwanted chassis movement while providing a more direct response from the vehicle.

The setup is well suited to K13s being used for:

• Daily Driving
• Fast-Road Use
• Modified Road Builds
• Weekend Cars
• Occasional Track Days
• Performance Builds

As with any performance suspension, expect a firmer ride compared with the original Nissan suspension.

Adjustable Ride Height

The coilover arrangement allows the vehicle's ride height to be adjusted to suit the individual build.

This allows the suspension to be configured around factors such as:

• Desired Vehicle Stance
• Wheel & Tyre Package
• Ground Clearance
• Intended Vehicle Use
• Suspension Geometry

Lower Isn't Always Better

Although coilovers provide considerably greater control over ride height, setting the vehicle as low as physically possible can negatively affect suspension performance.

Excessive lowering can result in:

• Reduced Suspension Travel
• Bottoming Out
• Unfavourable Suspension Geometry
• Increased Bump Steer
• Driveshaft Angle Changes
• Tyre-to-Body Contact
• Increased Tyre Wear
• Reduced Ground Clearance

For a performance-focused vehicle, the objective should be to find an appropriate balance between ride height, suspension travel and geometry rather than simply achieving the lowest possible stance.

⚠️ OEM Top Mounts Are Reused

FRONT AND REAR TOP MOUNTS ARE NOT INCLUDED.

This K13 coilover kit is designed to reuse the vehicle's OEM front and rear upper mounting components.

We strongly recommend inspecting the existing mounts during installation.

Check for:

• Worn or Perished Rubber
• Excessive Movement
• Damaged Bearings where applicable
• Cracking
• Corrosion
• Damaged Mounting Hardware

Any worn components should be replaced before the new suspension is installed.

Improved Body Control

Replacing ageing factory suspension with a performance coilover setup can provide improved control over vehicle movement during:

• Cornering
• Braking
• Acceleration
• Direction Changes

The firmer spring rates can help reduce excessive body roll, pitch and squat while providing a more direct connection between the chassis and suspension.

Actual handling will depend on the complete vehicle setup, including tyres, alignment, ride height, bushes, anti-roll bars and other suspension components.

Ideal for Modified K13 Builds

These coilovers provide a straightforward suspension solution for customers wanting to lower their K13 while also improving its handling characteristics.

They're particularly suitable for cars fitted with:

• Performance Wheels & Tyres
• Chassis Bracing
• Uprated Anti-Roll Bars
• Performance Brakes
• Engine Performance Upgrades
• Other Fast-Road Suspension Components

Suspension components should always be considered as part of the complete vehicle rather than in isolation.

Professional Installation & Alignment Recommended

Coilovers are a significant suspension modification and should be installed by somebody suitably experienced with automotive suspension systems.

Following installation, the vehicle should receive a professional four-wheel alignment.

The installer should check:

• Ride Height
• Toe
• Camber where applicable
• Wheel & Tyre Clearance
• Brake Hose Routing
• ABS Wiring
• Driveshaft Clearance
• Steering Clearance
• Suspension Travel
• OEM Top Mount Condition
• Fastener Torque

The suspension should also be inspected again after an appropriate settling period.

What's Included?

• Complete GizFab Adjustable Coilover Kit for Nissan Micra K13

Top Mounts

Front: Reuse OEM Mount
Rear: Reuse OEM Mount

Replacement top mounts are not included.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover normal wear, corrosion resulting from inadequate maintenance, incorrect installation, accident or impact damage, misuse, excessively lowered or incorrectly configured suspension, damaged OEM top mounts or failure caused by surrounding suspension components.

GizFab Motorsport Developments is an independent aftermarket supplier and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
