Nissan Micra K13 BC Racing BR Series Coilovers - Without ARB Tab

Upgrade the suspension of your Nissan Micra K13 with the BC Racing BR Series Coilover Kit, providing adjustable ride height and a performance-focused suspension setup for road, fast-road and track applications.

This RN configuration features 4kg/mm front and 4.5kg/mm rear spring rates and is designed specifically for FWD K13 models from 2010-2016 WITHOUT the anti-roll bar mounting tab on the front strut.

⚠️ IMPORTANT FITMENT - WITHOUT ARB TAB

THIS KIT IS FOR K13 MODELS WITHOUT THE FRONT STRUT ARB / DROP-LINK MOUNTING TAB.

Please physically inspect your existing front suspension before ordering.

Different K13 suspension configurations exist, and registration year or engine specification alone should not be relied upon to identify the correct kit.

If your front anti-roll bar drop link attaches directly to a tab on the front strut, this is not the correct version for your vehicle.

Specification

• Vehicle: Nissan Micra / March K13
• Fitment: FWD 2010-2016
• ARB Configuration: WITHOUT ARB Tab
• Manufacturer: BC Racing
• Series: BR Series
• Coilover Type: RN
• Front Spring Rate: 4kg/mm
• Rear Spring Rate: 4.5kg/mm
• 46mm Damper Piston
• 53mm Damper Body
• Adjustable Ride Height
• Front Top Mounts Not Included
• Rubber Rear Top Mounts or No Rear Top Mounts, depending on application

BC Racing BR Series

The BR Series is BC Racing's popular performance coilover range, designed to provide a balance between handling, adjustability, build quality and road usability.

Each application is developed around the characteristics of the individual vehicle rather than relying on a single universal damper specification.

This makes the BR Series suitable for everything from lowered road cars and fast-road builds through to vehicles seeing regular track use.

46mm Piston & 53mm Damper Body

BC Racing BR Series coilovers use a large:

46mm Diameter Piston

within a:

53mm Diameter Damper Body

The larger damper body allows a greater volume of oil to be contained within the unit.

As a damper operates, movement generates heat within the oil. Because oil viscosity changes with temperature, excessive heat can affect damping behaviour.

The increased oil capacity of the BR Series helps control peak operating temperatures and maintain more consistent damper characteristics during demanding use.

4kg/mm Front & 4.5kg/mm Rear Spring Rates

This K13 kit is supplied with:

Front: 4kg/mm
Rear: 4.5kg/mm

These spring rates provide a more performance-focused suspension setup than the standard Nissan suspension while retaining a specification suitable for vehicles that may still see regular road use.

The result is a more controlled and direct suspension response, particularly during:

• Cornering
• Braking
• Acceleration
• Direction Changes
• Fast-Road Driving
• Track Use

As with any performance suspension, expect a firmer ride compared with the original factory setup.

Adjustable Ride Height

The BR Series allows the vehicle's ride height to be adjusted to suit the individual build.

This makes the kit suitable for:

• Lowered Road Cars
• Fast-Road Builds
• Track-Day Cars
• Modified K13s
• Performance Wheel & Tyre Setups
• Show Vehicles

Ride height should always be chosen with consideration for suspension geometry and available suspension travel rather than simply adjusting the vehicle as low as physically possible.

⚠️ Front Top Mounts Not Included

The RN Series does not include replacement front top mounts.

The appropriate existing/OEM front mounting arrangement is therefore retained.

We strongly recommend inspecting the original:

• Front Top Mounts
• Bearings
• Rubber Components
• Mounting Hardware

during installation.

Any worn or damaged components should be replaced before fitting the new coilovers.

Rear Top Mount Arrangement

Depending on the specific application configuration, the rear suspension is supplied with rubber rear top mounts or without replacement rear top mounts.

This is normal for the RN configuration and depends on the mounting arrangement specified by BC Racing for the vehicle.

Improved Body Control

Replacing ageing factory suspension with a performance coilover setup can provide:

• Reduced Body Roll
• Reduced Pitch under Braking
• More Direct Suspension Response
• Improved Steering Feedback
• Greater Control over Ride Height
• More Consistent Chassis Behaviour

Actual handling will depend on the complete vehicle setup, including tyres, alignment, ride height, bushes, anti-roll bars and other suspension components.

⚠️ Lower Isn't Always Better

Coilovers provide considerably greater control over vehicle ride height, but excessive lowering can negatively affect the way the vehicle drives.

Potential problems include:

• Reduced Suspension Travel
• Bottoming Out
• Altered Suspension Geometry
• Increased Bump Steer
• Increased Tyre Wear
• Driveshaft Angle Changes
• Reduced Ground Clearance
• Tyre-to-Body Contact

A properly set-up suspension package will generally perform better than one adjusted solely to achieve the lowest possible ride height.

Professional Installation & Alignment Recommended

Coilovers are a significant suspension modification and should be installed by a suitably qualified technician.

Following installation, the vehicle should receive a professional four-wheel alignment.

The installer should check:

• Correct ARB Configuration
• Ride Height
• Camber
• Toe
• Wheel & Tyre Clearance
• Brake Hose Routing
• ABS Wiring
• Driveshaft Angles
• Steering Clearance
• Suspension Travel
• Fastener Torque
• Top Mount Condition

The suspension should also be inspected again after an appropriate settling period.

Compatibility

Designed for:

Nissan Micra / March K13
FWD Models
2010-2016
WITHOUT Front Strut ARB Tab

⚠️ CHECK YOUR CAR BEFORE ORDERING

K13 suspension configurations vary.

Please physically check whether your existing front struts have an anti-roll bar / drop-link mounting tab before ordering.

If your vehicle has the ARB drop link attached to the front strut, you will require the appropriate alternative BC Racing kit.

What's Included?

A complete BC Racing BR Series RN Coilover Kit for the applicable Nissan Micra K13.

The kit is supplied according to BC Racing's application specification.

Front top mounts are not included.

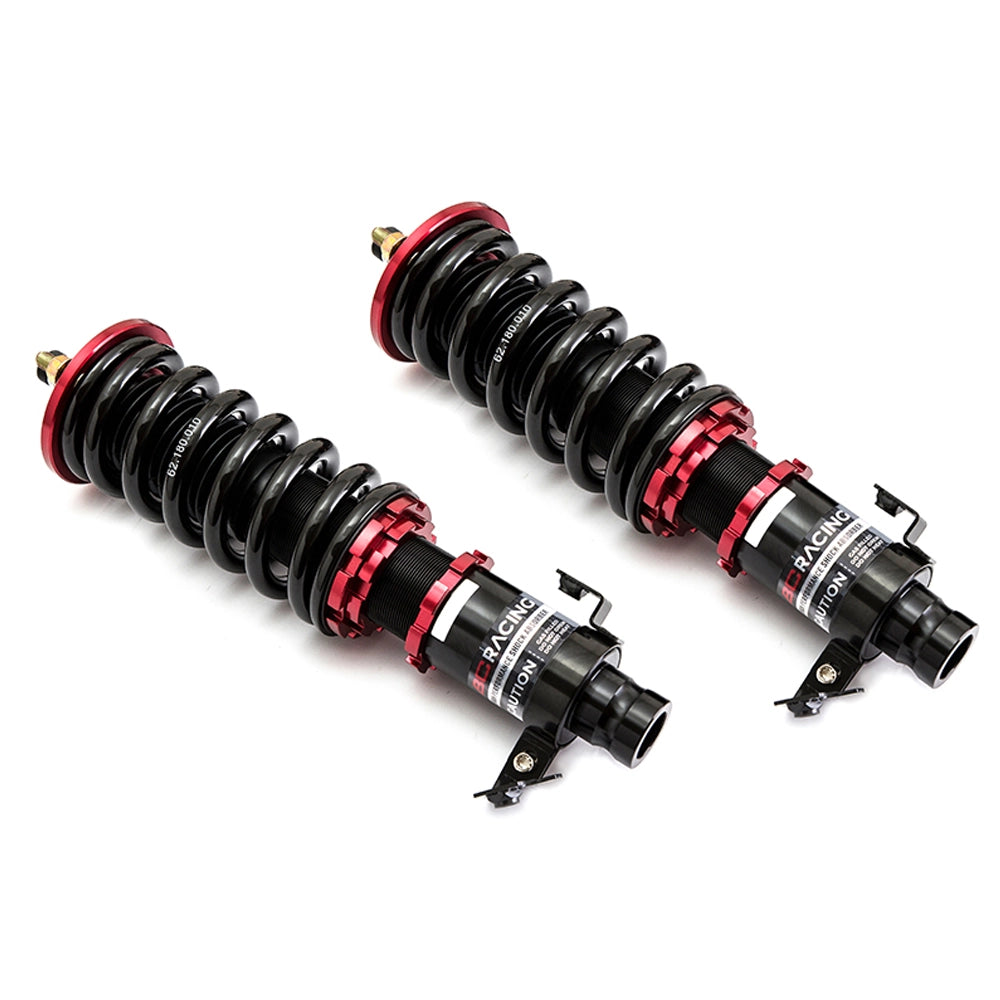

Image for Illustration Purposes Only

Product images may show a generic BC Racing coilover kit and are for illustration purposes only.

The exact mounting arrangement, brackets, top mounts and other application-specific components supplied may differ from those shown.

Manufacturer Warranty

This is a genuine BC Racing suspension product and is supplied subject to BC Racing's applicable warranty terms and conditions.

Normal wear, corrosion, accident or impact damage, incorrect installation, misuse and damage caused by unsuitable vehicle setup are subject to the manufacturer's applicable warranty exclusions.

BC Racing is a third-party manufacturer. GizFab Motorsport Developments is an independent retailer and is not affiliated with, sponsored by or endorsed by BC Racing or Nissan Motor Co., Ltd. Nissan, Micra, March and BC Racing names are used solely for product identification and application purposes.
