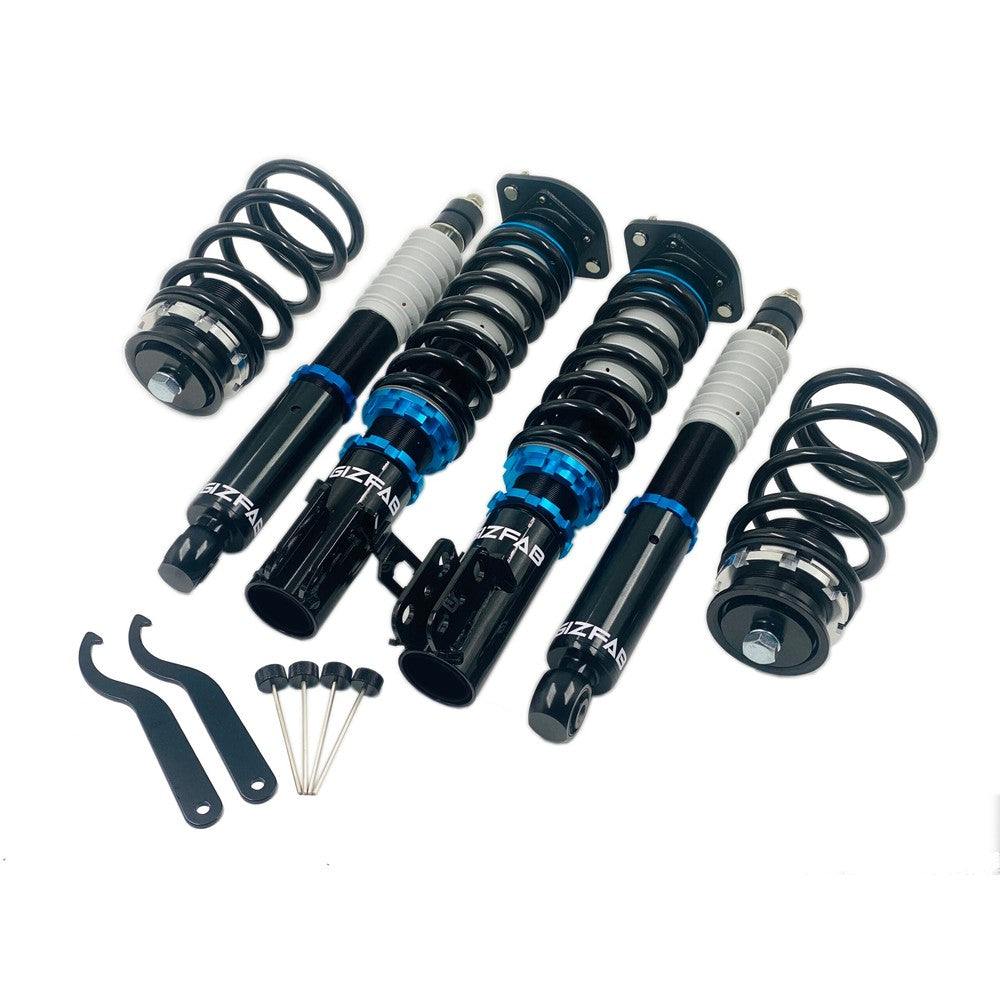

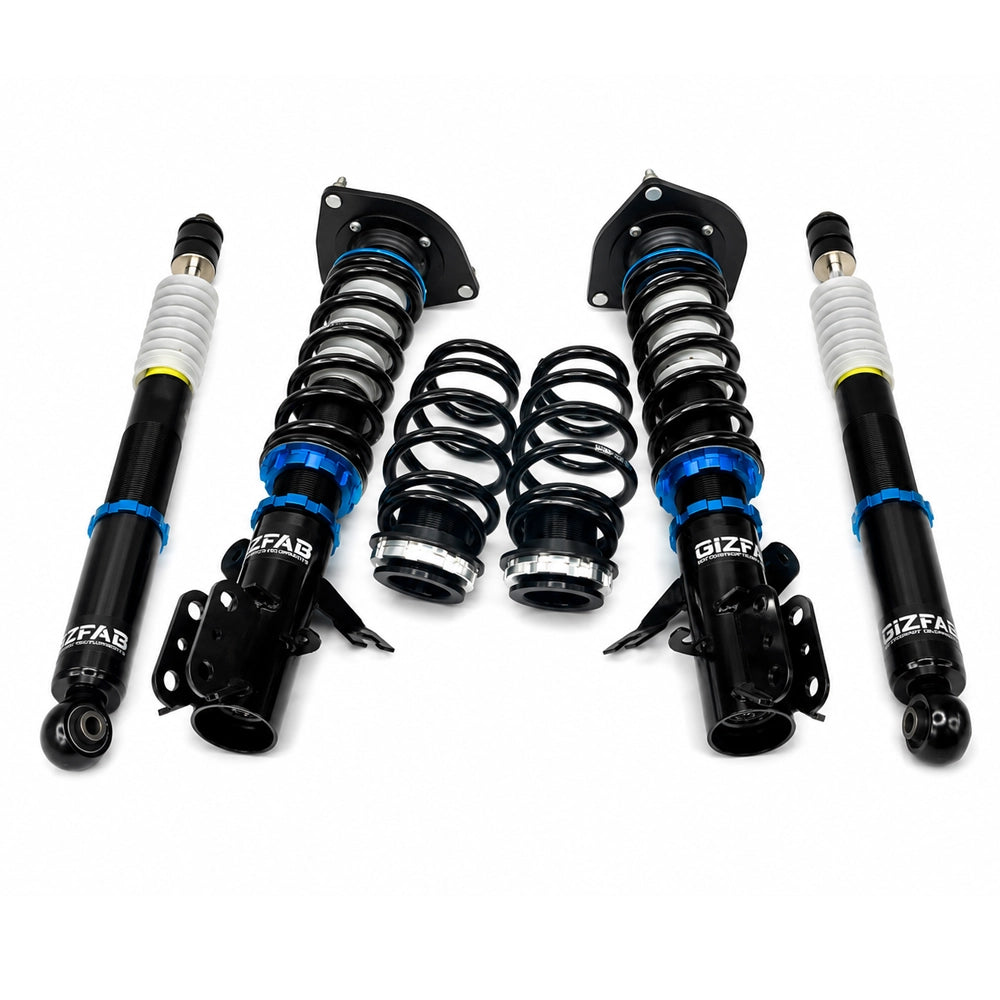

Nissan Micra K12 GizFab Adjustable Coilovers

Upgrade the suspension of your Nissan Micra K12 with our GizFab Adjustable Coilover Kit, designed to provide a lower ride height, improved body control and a more direct suspension response.

Featuring 6kg/mm front and 4.5kg/mm rear spring rates, the kit provides a performance-focused suspension setup suitable for modified road cars, fast-road builds and track use.

Choose between Rubber Front Top Mounts for a more road-friendly setup or Camber Adjustable Front Top Mounts for vehicles requiring additional geometry adjustment.

Key Features

• Designed for the Nissan Micra K12
• Adjustable Ride Height
• 6kg/mm Front Spring Rate
• 4.5kg/mm Rear Spring Rate
• Choice of Rubber or Camber Adjustable Front Top Mounts
• Reuses the OEM Rear Top Mount Arrangement
• Improved Body Control
• Reduced Body Roll
• Lowered, More Purposeful Stance
• Suitable for Road, Fast-Road & Track Builds
• 12-Month Warranty

Spring Rates

The K12 kit is supplied with:

Front: 6kg/mm
Rear: 4.5kg/mm

These rates provide a firmer, more performance-focused suspension setup than the original Nissan suspension.

The increased spring rates help reduce excessive suspension movement during:

• Cornering
• Braking
• Acceleration
• Direction Changes

The result is a more direct and responsive driving experience.

As with any performance suspension, increased spring rates will also result in a firmer ride compared with the factory suspension.

Adjustable Ride Height

The coilover arrangement allows the vehicle's ride height to be adjusted to suit the individual build.

This makes the kit suitable for customers looking for:

• Reduced Arch Gap
• Improved Vehicle Stance
• Lower Centre of Gravity
• Fast-Road Suspension Setup
• Track-Day Setup
• Modified Wheel & Tyre Fitment

Ride height should always be chosen according to the intended use of the vehicle rather than simply adjusting the suspension to its lowest possible position.

Two Front Mount Options

Choose between:

Rubber Front Top Mounts

The Rubber Mount option provides additional isolation between the suspension and chassis.

This is generally the better choice for customers who want a performance suspension setup while retaining a greater degree of refinement for regular road use.

Rubber mounting helps isolate some of the mechanical noise, vibration and harshness that can otherwise be transferred directly into the vehicle.

Camber Adjustable Front Top Mounts

The Camber Plate option provides additional front suspension geometry adjustment.

This allows the front camber to be fine-tuned as part of a professional wheel alignment, making it particularly useful for:

• Lowered Vehicles
• Fast-Road Builds
• Track Cars
• Motorsport Applications
• Performance Wheel & Tyre Setups

Camber plates provide a more direct suspension mounting arrangement than conventional rubber mounts and can therefore transmit additional noise, vibration and harshness into the cabin.

Which Front Mount Should I Choose?

For a predominantly road-driven K12 where comfort and refinement remain important:

Rubber Mounts are generally the better choice.

For a more performance-focused vehicle where additional geometry adjustment is desirable:

Camber Plates are generally the better choice.

Neither is universally "better". The correct option depends on how the vehicle will be used.

OEM Rear Mount Arrangement

The rear suspension is designed to reuse the original Nissan rear mounting arrangement.

The condition of the original rear mounting components should therefore be carefully inspected during installation.

Any worn, damaged or heavily corroded components should be replaced before the new suspension is installed.

Handling & Body Control

Replacing the original suspension with a performance coilover setup can provide a noticeably more controlled driving experience.

Potential benefits include:

• Reduced Body Roll
• Reduced Pitch under Braking
• More Direct Steering Response
• Improved Suspension Feedback
• Greater Control over Ride Height
• Improved Chassis Response

Actual handling characteristics will depend on the complete vehicle setup, including tyres, alignment, ride height, anti-roll bars, bushes and other suspension components.

⚠️ Lower Isn't Always Better

Although the suspension allows the vehicle to be lowered, excessive lowering can negatively affect how the car drives.

Potential issues include:

• Reduced Suspension Travel
• Bottoming Out
• Altered Suspension Geometry
• Increased Bump Steer
• Increased Tyre Wear
• Driveshaft Angle Changes
• Reduced Ground Clearance
• Tyre-to-Body Contact

A properly set-up K12 will generally perform better than one that has simply been adjusted as low as physically possible.

Professional Installation & Alignment Recommended

Coilovers are a significant suspension modification and should be installed by a suitably qualified professional.

Following installation, we strongly recommend carrying out a professional four-wheel alignment.

The installer should check:

• Ride Height
• Front Camber
• Front & Rear Toe
• Wheel & Tyre Clearance
• Brake Hose Routing
• ABS Wiring
• Driveshaft Angles
• Steering Clearance
• Suspension Travel
• Fastener Torque

Vehicles fitted with the optional camber plates should have the front camber set according to the intended use of the vehicle.

What's Included?

• Complete Nissan Micra K12 GizFab Adjustable Coilover Kit
• 6kg/mm Front Springs
• 4.5kg/mm Rear Springs
• Selected Rubber or Camber Plate Front Mount Configuration

The rear suspension reuses the appropriate OEM rear mounting arrangement.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover normal wear and tear, corrosion caused by environmental exposure or lack of maintenance, incorrect installation, accident or impact damage, excessive lowering, bottoming-out damage, damaged threads caused by incorrect adjustment, modification or failure caused by surrounding suspension components.

Rubber mounting components and other serviceable suspension components may be subject to normal deterioration through use and are not covered where wear is considered normal for the mileage and application.

GizFab Motorsport Developments is an independent aftermarket supplier and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
