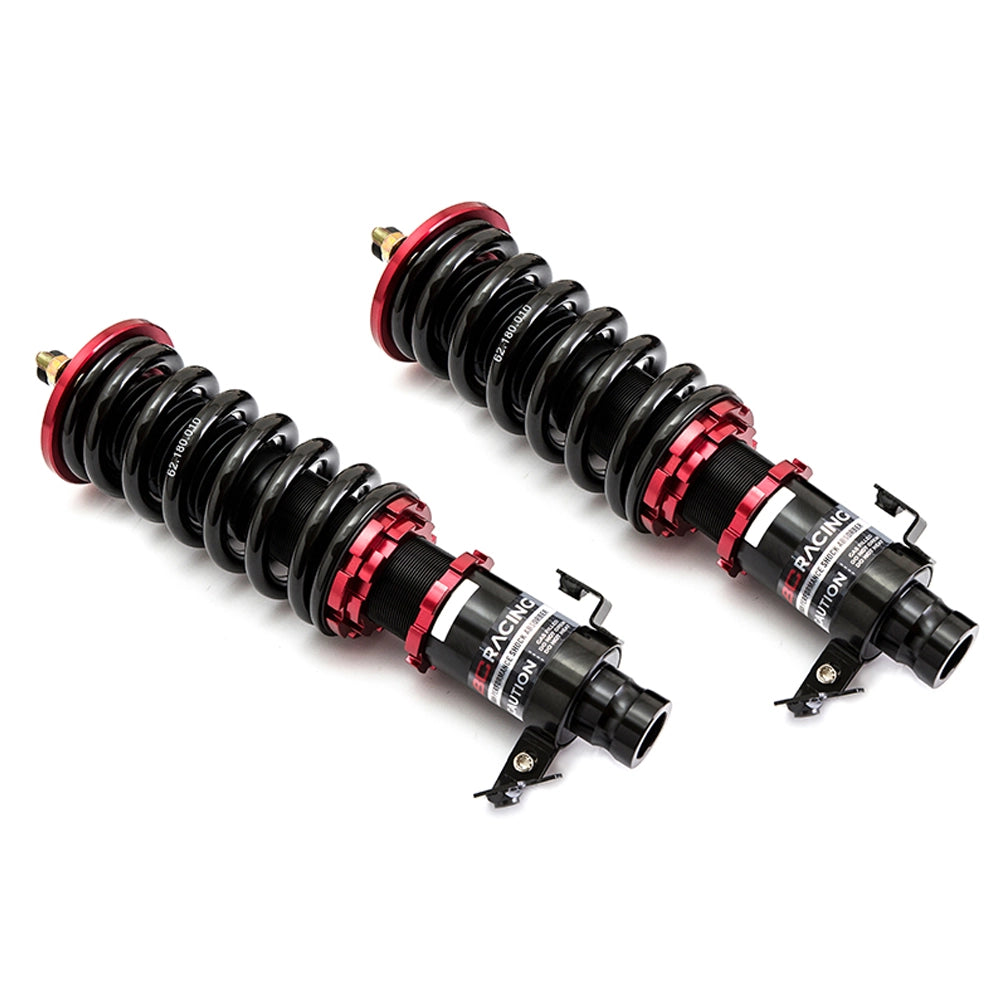

Nissan Micra K12 BC Racing V1 Series Coilovers

Upgrade the suspension of your Nissan Micra K12 with a BC Racing V1 Series Coilover Kit, providing adjustable ride height and performance-focused damping in a complete suspension package.

With 4kg/mm front and 6kg/mm rear spring rates, this setup provides a significant suspension upgrade for K12 owners looking to improve handling, reduce body movement and lower the vehicle.

Specification

• Vehicle: Nissan Micra K12
• Manufacturer: BC Racing
• Series: V1 Series
• Coilover Type: VA
• Front Spring Rate: 4kg/mm
• Rear Spring Rate: 6kg/mm
• 44mm Damper Piston
• 50mm Damper Body
• Front Aluminium Pillowball Top Mounts with Camber Adjustment where available
• Aluminium Rear Top Mounts with Rubber Centres or No Rear Top Mounts, depending on application
• Adjustable Ride Height
• Complete Vehicle Coilover Kit

BC Racing V1 Series

The BC Racing V1 Series uses a large 44mm diameter piston housed within a 50mm diameter damper body.

The larger damper body allows for increased oil capacity within the damper.

As suspension operates, movement through the damper generates heat within the oil. Because damper oil viscosity changes with temperature, excessive heat can alter damping behaviour.

The increased oil capacity of the V1 damper design helps manage operating temperatures and maintain more consistent damper characteristics during demanding use.

4kg/mm Front & 6kg/mm Rear Spring Rates

This K12 kit is supplied with:

Front: 4kg/mm
Rear: 6kg/mm

The spring rates have a significant influence on how the vehicle responds to bumps, braking, cornering and weight transfer.

Compared with a standard road suspension setup, coilovers will generally provide a firmer and more direct driving experience, particularly when combined with a reduced ride height.

Adjustable Ride Height

One of the major advantages of converting to coilovers is the ability to adjust the vehicle's ride height.

This allows the K12 to be set up for:

• Improved Appearance
• Reduced Arch Gap
• Fast-Road Use
• Track Use
• Modified Wheel & Tyre Packages
• Individual Vehicle Setup

Extremely low ride heights can negatively affect suspension geometry, driveshaft angles, bump travel and ground clearance, so the lowest possible setting is not necessarily the best-performing setting.

Pillowball Front Top Mounts

The VA configuration is supplied with aluminium pillowball front top mounts with camber adjustment where the vehicle application permits.

Pillowball mounts reduce the compliance found in conventional rubber top mounts, providing a more direct connection between the suspension and chassis.

This can improve steering and suspension feedback, although increased mechanical noise and vibration may also be transmitted into the vehicle.

Where camber adjustment is available through the top mount, it provides an additional method of fine-tuning front suspension geometry.

Rear Top Mounts

Depending on the specific K12 suspension arrangement, the kit may be supplied with aluminium rear top mounts with rubber centres or without rear top mounts, in accordance with BC Racing's application specification.

Road & Performance Use

The V1 Series provides a useful suspension upgrade for K12s used for:

• Road Cars
• Fast-Road Builds
• Track Days
• Modified Vehicles
• Show Cars
• Performance Builds

As with any coilover conversion, there is a trade-off between handling response and ride comfort.

A lowered vehicle with increased spring rates will generally feel firmer than the original Nissan suspension.

Professional Installation & Alignment Recommended

Coilovers are a major suspension modification and should be installed by a suitably qualified technician.

After installation, the vehicle should receive a professional four-wheel alignment.

The installer should also check:

• Suspension Clearance
• Wheel & Tyre Clearance
• Brake Hose Routing
• ABS Wiring
• Driveshaft Angles
• Steering Clearance
• Suspension Travel
• Bump Stop Clearance
• Fastener Torque
• Ride Height
• Camber & Toe

We recommend allowing the suspension to settle before carrying out the final geometry setup.

Important Ride Height Considerations

Lowering a vehicle significantly can change suspension and steering geometry.

Excessive lowering can result in:

• Reduced Suspension Travel
• Increased Risk of Bottoming Out
• Altered Bump Steer
• Increased Tyre Wear
• Reduced Ground Clearance
• Driveshaft Angle Changes
• Increased Contact with Speed Bumps & Road Surfaces

The suspension should therefore be set according to the vehicle's intended use rather than simply adjusted to its minimum possible ride height.

What's Included?

A complete BC Racing V1 Series Coilover Kit for the Nissan Micra K12, supplied according to BC Racing's application specification.

Image for Illustration Purposes Only

Product images may be generic BC Racing images and are for illustration purposes only.

Mounting arrangements, brackets, top mounts and other application-specific details may differ from those shown.

Manufacturer Warranty

This is a genuine BC Racing suspension product and is supplied subject to BC Racing's applicable warranty terms and conditions.

Normal wear, corrosion, accident or impact damage, incorrect installation, misuse and damage caused by unsuitable vehicle setup are subject to the manufacturer's applicable warranty exclusions.

BC Racing is a third-party manufacturer. GizFab Motorsport Developments is an independent retailer and is not affiliated with, sponsored by or endorsed by BC Racing or Nissan Motor Co., Ltd. Nissan and BC Racing names are used solely for product identification and application purposes.
