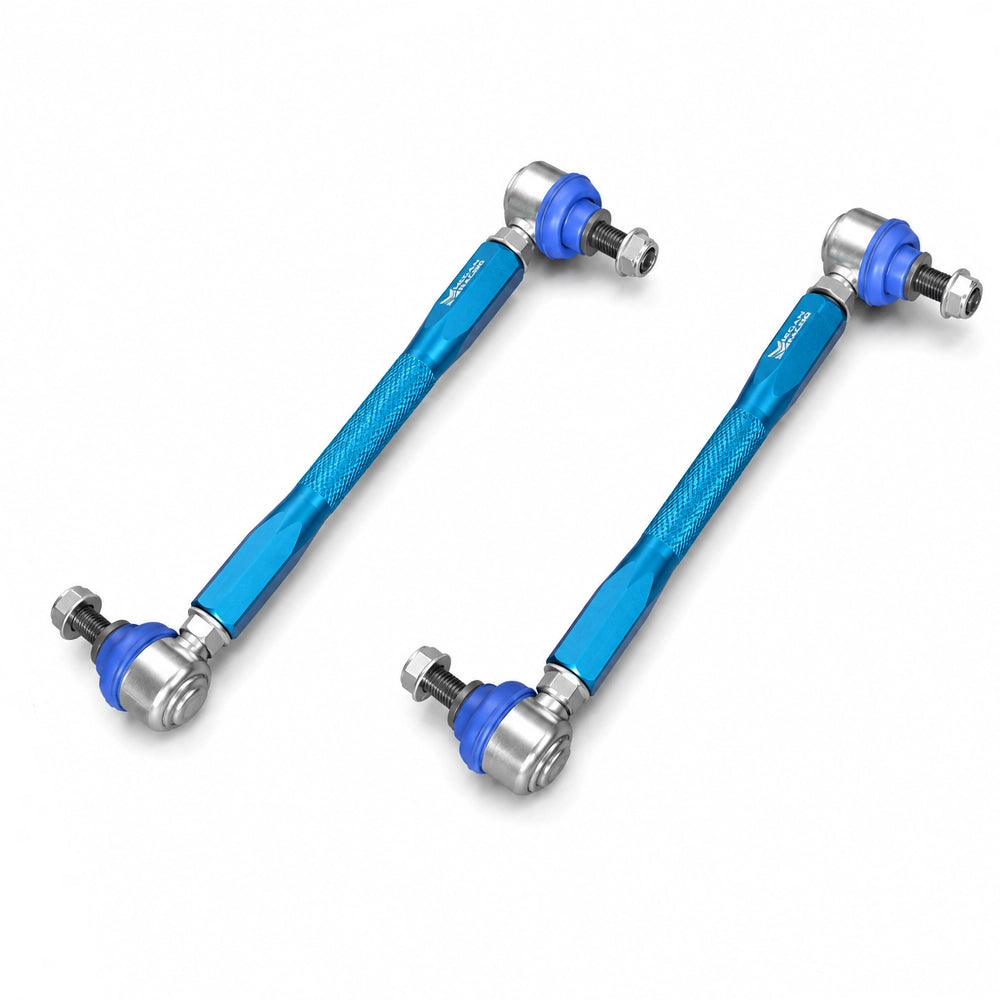

Nissan Micra K12 Adjustable Front Anti-Roll Bar Drop Links

Upgrade or correct the anti-roll bar setup on your Nissan Micra K12 with this pair of adjustable front anti-roll bar drop links.

With an adjustable length range of 240mm to 279mm and M10 ball studs, these links allow the anti-roll bar linkage length to be fine-tuned to suit the vehicle's suspension setup.

Particularly useful on lowered K12s, where changing the vehicle's ride height can alter the operating position of the anti-roll bar and its drop links.

Key Features

• Designed for the Nissan Micra K12
• Adjustable Front Anti-Roll Bar Drop Links
• 2-Piece Set
• Adjustment Range: 240mm-279mm
• M10 Ball Studs
• Allows Fine Adjustment of ARB Linkage Length
• Ideal for Lowered & Modified Vehicles
• Useful with Coilovers & Performance Suspension
• Helps Correct Anti-Roll Bar Position after Lowering
• Reference: 8659-260

Specification

Quantity: 2 Links / 1 Pair
Adjustment Range: 240mm-279mm
Ball Stud: M10
Reference: 8659-260
Application: Nissan Micra K12 Front Anti-Roll Bar Linkage

Why Use Adjustable Drop Links?

The anti-roll bar is designed to operate within a particular range of angles with the vehicle at its intended ride height.

When a K12 is lowered using springs or coilovers, the suspension's resting position changes.

Depending on the amount of lowering and suspension configuration, this can alter the position of the anti-roll bar and drop links.

An adjustable linkage allows the effective length to be changed to better suit the modified suspension arrangement.

This can be particularly useful for:

• Lowered K12s
• Coilover Installations
• Performance Suspension Setups
• Track Cars
• Fast-Road Builds
• Custom Ride Heights

240mm-279mm Adjustment Range

Each linkage provides an adjustment range of:

240mm to 279mm

This provides approximately 39mm of available adjustment within the specified range.

The correct length should be determined by the suspension setup rather than simply adjusting the links to their shortest possible setting.

⚠️ Shorter Isn't Automatically Better

The purpose of an adjustable drop link is to achieve an appropriate anti-roll bar position and linkage geometry.

It is not simply a way of making the drop link as short as possible.

Incorrect adjustment can result in:

• Unwanted Anti-Roll Bar Preload
• Poor Linkage Angles
• Reduced Clearance
• Link Binding
• Unnecessary Load on Ball Joints
• Contact with Surrounding Suspension Components

The linkage should be adjusted according to the vehicle's actual ride height and suspension geometry.

M10 Ball Studs

These links use M10 ball studs.

⚠️ Check Before Ordering

Although listed for the Nissan Micra K12, we recommend checking the existing linkage arrangement before ordering, particularly on imported, converted or heavily modified vehicles.

Confirm:

• Required Link Length
• M10 Ball Stud Size
• Mounting Arrangement
• Available Clearance

The 240-279mm range must suit your suspension setup.

Useful When Fitting Coilovers

Adjustable drop links are particularly useful when installing coilovers.

A substantial change in ride height can alter the relationship between the suspension and anti-roll bar.

Being able to alter the linkage length provides an additional means of setting up the anti-roll bar correctly rather than being restricted to the fixed length of the original linkage.

Anti-Roll Bar Preload

Where the suspension setup allows, adjustable links can also be used to help minimise unwanted static preload within the anti-roll bar.

For performance and motorsport applications, final adjustment should ideally be carried out with the vehicle at its normal operating ride height and representative vehicle load.

Both sides should be adjusted appropriately and sufficient thread engagement must be maintained.

What's Included?

• 2x Adjustable Anti-Roll Bar Drop Links

Supplied as one complete pair.

Installation

Anti-roll bar linkages are suspension components and should be installed by somebody suitably experienced with automotive suspension systems.

During installation, check:

• Anti-Roll Bar Position
• Drop-Link Angle
• Ball Joint Articulation
• Suspension Clearance
• Driveshaft Clearance
• Brake Hose & ABS Wiring Clearance
• Wheel & Tyre Clearance
• Full Steering Movement
• Suspension Travel
• Thread Engagement
• Locking Hardware

The suspension should be checked through its operating range to ensure the links do not bind or contact surrounding components.

Following adjustment, all locking hardware must be correctly secured.

Ideal for Suspension Upgrades

These adjustable links are a useful addition when combining the K12 with:

• Lowering Springs
• Adjustable Coilovers
• Uprated Anti-Roll Bars
• Performance Bushes
• Chassis Bracing
• Fast-Road Suspension Setups

As with any suspension modification, the best results come from setting up the complete suspension system rather than treating each component individually.

Manufacturer Warranty

This product is supplied subject to the applicable manufacturer's warranty terms and conditions.

Ball joints and articulated linkage components are service items. Warranty does not normally cover normal wear, damaged boots, contamination, incorrect adjustment, insufficient thread engagement, impact damage, incorrect installation or binding caused by unsuitable suspension geometry.
