Nissan Micra K11 Front-Mounted Ramair Intake Kit

Feed your K11 with cooler, fresher air using our Front-Mounted Ramair Intake Kit, developed specifically for the Nissan Micra K11 CG engine platform.

Unlike a conventional open filter mounted inside the engine bay, this system positions the performance air filter directly behind the front grille, placing it in a much cooler and more direct airflow path.

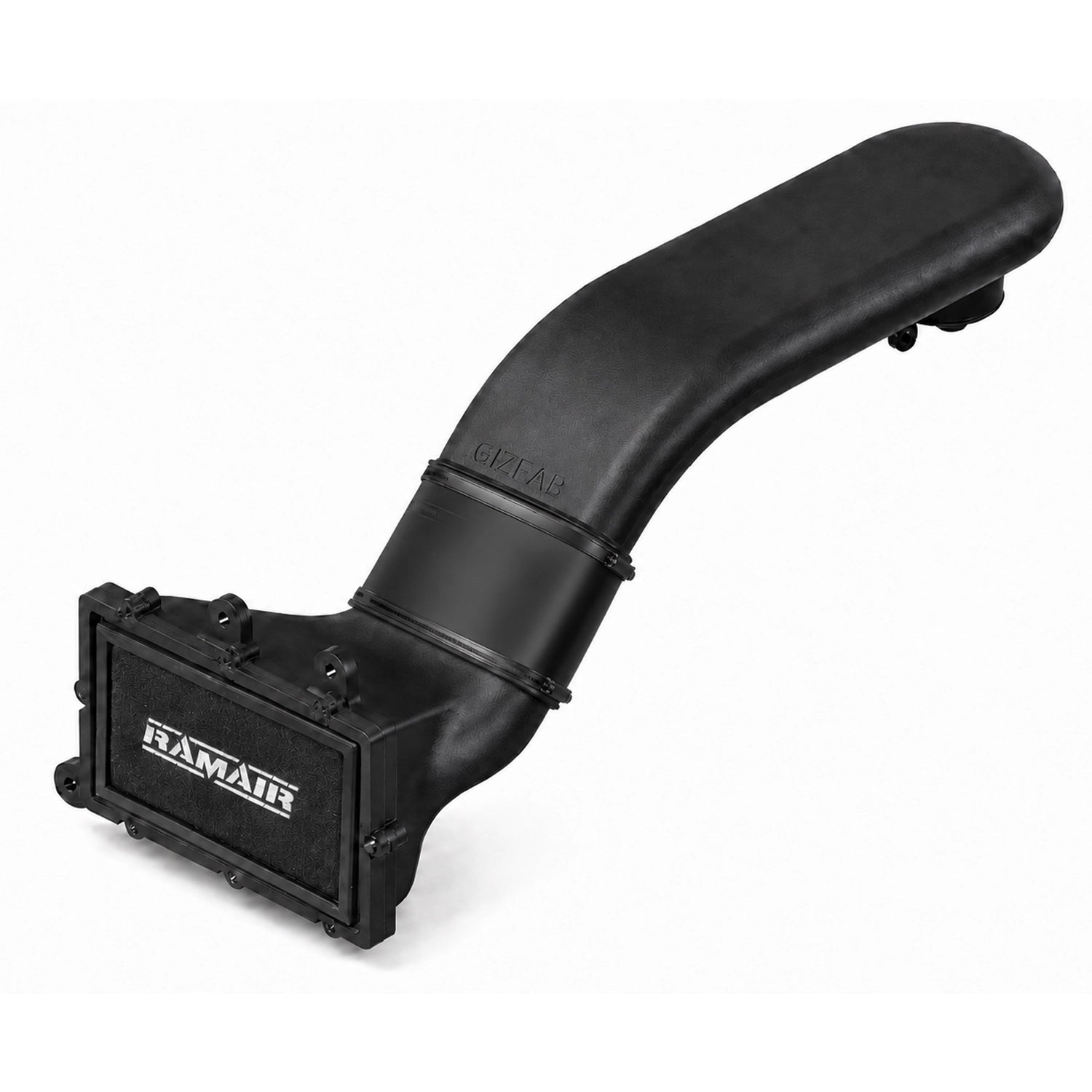

The intake combines a front-mounted airbox, high-flow flat-oval crossover tube and integrated throttle-body bellmouth to create a large, low-profile intake system that clears the top of the CG engine while fitting beneath the bonnet.

Key Features

• Designed Specifically for the Nissan Micra K11
• Front-Mounted Air Filter Position
• Ramair Performance Air Filter Included
• Large-Volume Flat-Oval Crossover Tube
• Internal Cross-Section Equivalent to Approximately 114mm / 4.5" Round Tube
• Integrated Throttle-Body Bellmouth
• SLS 3D-Printed PA12 Nylon Construction
• Suitable for Distributor & Coilpack CG Engines
• Clears GizFab K11 Strut Braces
• Compatible with Selected GizFab Exhaust Manifolds
• Black Silicone Joiners
• Stainless Steel Hose Clamps
• Mounting Brackets & Hardware Included
• 12-Month Warranty

Why Front-Mount the Air Filter?

An open air filter located within the engine bay can be exposed to significant radiant and convected heat from the engine, radiator and exhaust system.

This kit moves the filter away from those major heat sources and positions it directly behind the front grille, where it has access to incoming ambient air.

The objective is to provide the engine with a cooler and less heat-soaked air supply while retaining a large filter area and unrestricted intake path.

Actual intake temperature and performance will still depend on factors including:

• Vehicle Speed
• Ambient Temperature
• Engine Bay Temperature
• Grille Configuration
• Radiator Heat
• Engine Specification

No specific horsepower increase is guaranteed from the intake alone.

High-Flow Flat-Oval Crossover Tube

One of the biggest challenges when designing a large intake for the K11 is getting sufficient cross-sectional area over the top of the engine without running into the bonnet.

A conventional large-diameter round tube quickly becomes too tall.

Our solution is a wide, flat-oval crossover section.

The internal cross-sectional area is equivalent to approximately a:

114mm / 4.5" Diameter Round Tube

This provides a very large airflow path while keeping the overall height of the intake considerably lower than an equivalent circular tube.

The result is a system that can provide substantial airflow capacity while maintaining the packaging required within the compact K11 engine bay.

Integrated Throttle-Body Bellmouth

At the throttle-body end of the crossover tube, the intake incorporates a purpose-designed bellmouth transition.

Rather than allowing incoming air to meet an abrupt edge immediately before entering the throttle body, the bellmouth provides a smoother transition into the opening.

This helps reduce unnecessary turbulence and flow separation as air enters the throttle body.

The bellmouth is integrated directly into the intake component rather than being a separate bolt-on piece.

SLS 3D-Printed PA12 Nylon Construction

The main intake components are manufactured using Selective Laser Sintering (SLS) in PA12 nylon.

SLS manufacturing allows us to create complex geometry that would be extremely difficult to reproduce using conventional tube fabrication, particularly the large flat-oval crossover profile and integrated bellmouth.

PA12 provides a useful combination of:

• Strength
• Low Weight
• Heat Resistance
• Impact Resistance
• Vibration Resistance
• Oil & Vapour Resistance
• Dimensional Stability

This makes it particularly well suited to automotive intake components.

Distributor & Coilpack Compatibility

The kit is designed to suit both:

• Distributor / Dizzy CG Engines
• Coilpack CG Engines

As K11s are frequently engine and loom swapped, we recommend identifying the actual engine configuration rather than relying solely on registration year.

Strut Brace Compatibility

The low-profile crossover design has been developed and confirmed to clear our GizFab K11 strut braces.

Other Manufacturers' Strut Braces

We cannot guarantee clearance with every aftermarket brace.

Different manufacturers use different:

• Bar Heights
• Tube Diameters
• Mounting Brackets
• Engine Bay Positions
• Cross-Bar Profiles

If your vehicle is fitted with a third-party strut brace, clearance should be checked before ordering.

Exhaust Manifold Compatibility

The intake has been designed and confirmed to clear the following manifold arrangements:

• Factory Nissan Exhaust Manifold
• GizFab 4-2-1 Performance Manifold
• GizFab Shorty Manifold
• GizFab 4-1 Performance Manifold

⚠️ NOT Compatible With:

• GizFab UEL Manifold
• GizFab Race-Spec Manifold

These manifold designs occupy additional space within the intake's required routing area.

Other Aftermarket Manifolds

We cannot guarantee compatibility with manifolds manufactured by other companies.

Aftermarket manifold dimensions and runner positions vary considerably, so clearance should be confirmed before ordering.

Ramair Performance Air Filter

The kit includes a Ramair performance air filter positioned directly behind the front grille.

The mounting arrangement may also accept other filters of a suitable neck size and physical dimensions, although compatibility with alternative filters is the customer's responsibility.

The supplied Ramair filter has been selected around the intended airflow requirements and available front-end packaging of the kit.

What About Rain?

The filter sits behind the front grille but remains positioned sufficiently high within the front of the vehicle that normal rain and normal road spray are not expected to present an issue when the system is correctly installed.

The filter is also partially shielded by the surrounding front-end structure.

However, as with any forward-mounted intake, sensible consideration must be given to extreme water exposure.

Do Not Abuse the Vehicle Around Deep Water

Driving aggressively through:

• Flood Water
• Deep Standing Water
• Fords
• Streams
• Water Deep Enough to Submerge the Intake

can expose the filter to significantly more water than the system is designed to encounter.

If sufficient liquid water is drawn into an engine, serious engine damage can occur.

Normal rain is very different from deliberately driving through deep water.

Kit Contents

The complete kit includes:

• Front-Mounted Airbox
• Flat-Oval Crossover Tube with Integrated Bellmouth
• Ramair Performance Air Filter
• Black Silicone Joiners
• Stainless Steel Hose Clamps
• Mounting Brackets
• Installation Hardware

Alternative filters are not included unless specifically selected or stated.

Installation

Professional installation is recommended.

During installation, check:

• Throttle-Body Connection
• Intake Support Brackets
• Silicone Joiners
• Hose Clamp Security
• Bonnet Clearance
• Strut Brace Clearance
• Exhaust Manifold Clearance
• Radiator / Fan Clearance
• Front Grille Clearance
• Filter Position
• Engine Movement

Clearance should be checked with consideration for normal drivetrain movement rather than only while the vehicle is stationary.

After installation, check for:

• Intake Leaks
• Loose Clamps
• Contact with Surrounding Components
• Abnormal Engine Operation
• Damaged or Restricted Filter Element

The system should be periodically inspected as part of normal vehicle maintenance.

Modified Vehicle Fitment

This kit has been designed specifically around a conventional Nissan Micra K11 CG-engine installation.

Compatibility can be affected by:

• Engine Conversions
• Non-Standard Engine Mounting
• Relocated Radiators
• Custom Exhaust Manifolds
• Aftermarket Strut Braces
• Modified Slam Panels
• Custom Cooling Systems
• Other Engine Bay Modifications

If your vehicle is heavily modified and you're unsure whether the intake will fit, please contact us before ordering.

Product Image Disclaimer

The current product images are AI-generated visualisations created using renders from the actual CAD design files.

They are intended to provide an accurate representation of the overall design, packaging and appearance of the finished product.

Minor differences may exist in:

• Surface Finish
• Texture
• Hardware
• Hose Position
• Filter Appearance
• Manufacturing Details

The visualisations will be replaced with photographs of physical production components when available.

⚠️ Emissions, Motorsport & Road-Use Notice

FOR OFF-ROAD / CLOSED-CIRCUIT MOTORSPORT USE ONLY

Installation of this intake system may alter, remove, bypass or interfere with parts of the vehicle's original emissions-control and crankcase ventilation arrangement.

Depending on the vehicle specification, this can include systems such as:

• PCV / Crankcase Ventilation
• Oil Separation Equipment
• EVAP / Charcoal Canister Components

The completed installation may therefore affect emissions compliance, vehicle inspection requirements and road legality.

The installer and vehicle operator are responsible for ensuring the final vehicle complies with all applicable laws, regulations, insurance requirements and motorsport rules.

⚠️ Filtration & Water Ingestion

The engine must never be operated without an appropriate air filter correctly installed.

Inadequate filtration can allow dirt and debris to enter the engine, potentially causing accelerated wear or serious engine damage.

Extreme water exposure can also result in water ingestion.

Incorrect installation, inadequate filtration or water ingestion can cause severe engine damage.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover incorrect installation, physical impact, excessive heat from incompatible exhaust components, use with an incompatible engine or manifold arrangement, inadequate filtration, contaminated filters, deliberate deep-water exposure, water ingestion, modification of the intake or damage caused by surrounding components.

The air filter is a service component and normal contamination or deterioration through use is not considered a manufacturing defect.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd. or Ramair Filters. Nissan, Micra and Ramair names are used solely for vehicle, product and compatibility identification purposes.
