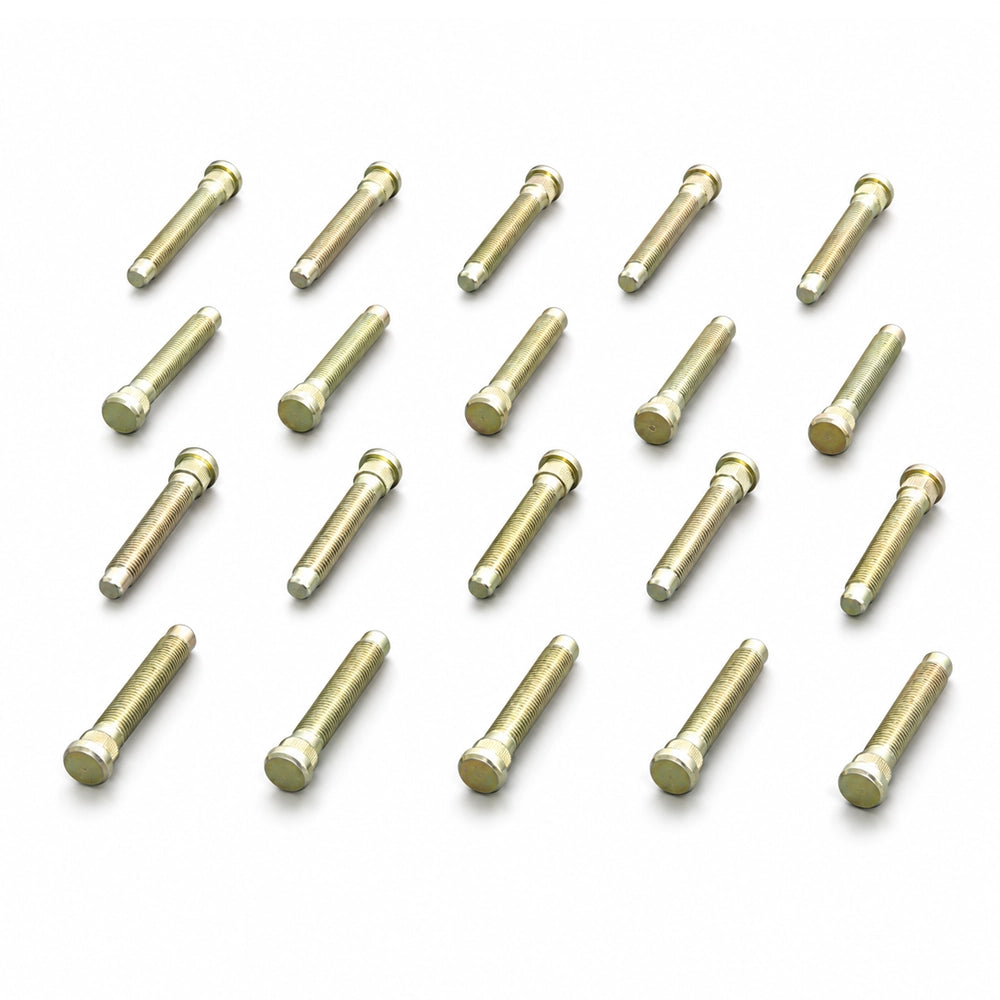

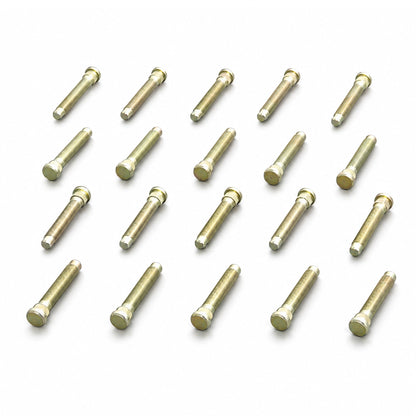

Nissan Micra K11 Extended Wheel Stud Set - M12 x 1.25

Upgrade the wheel mounting hardware on your Nissan Micra K11 with this complete set of extended wheel studs.

Supplied as a 20-piece set with an M12 x 1.25 thread, these extended studs are ideal for modified K11s where additional stud length is required, particularly when fitting wheel spacers or certain aftermarket wheel configurations.

Key Features

• Designed for the Nissan Micra K11
• 20-Piece Complete Set
• Extended Wheel Stud Design
• M12 x 1.25 Thread
• Suitable for Modified Wheel Setups
• Ideal for Compatible Wheel Spacer Installations
• Useful for Road, Fast-Road, Track & Motorsport Builds
• Reference: 7618

Specification

Quantity: 20 Studs
Thread: M12 x 1.25
Type: Extended Wheel Stud
Reference: 7618
Application: Nissan Micra K11

Why Fit Extended Wheel Studs?

The factory K11 wheel studs are designed around the original Nissan wheel and hub arrangement.

When fitting certain aftermarket wheels or wheel spacers, the effective amount of stud available for the wheel nut can be reduced.

Extended wheel studs provide additional stud length, allowing suitable thread engagement to be maintained where the modified wheel arrangement requires it.

They are particularly useful for:

• Slip-On Wheel Spacers
• Aftermarket Wheels
• Wider Wheel & Tyre Packages
• Track Wheel Setups
• Motorsport Builds
• Modified K11s

Ideal for Wheel Spacer Installations

One of the most common reasons for fitting extended studs to a K11 is when using slip-on wheel spacers.

Adding a spacer moves the wheel further away from the hub and consequently reduces the amount of the original stud available for the wheel nut.

Extended studs can provide the additional length required to maintain suitable wheel nut engagement.

⚠️ Correct Thread Engagement Is Essential

Extended studs do not automatically make every wheel spacer installation safe.

The installer must ensure that the complete wheel mounting arrangement provides sufficient thread engagement and that all components are suitable for the intended application.

The installation should take into consideration:

• Spacer Thickness
• Available Stud Length
• Wheel Nut Engagement
• Hub Location
• Wheel Centre Bore
• Wheel Offset
• Tyre Clearance
• Suspension Clearance
• Wheel Arch Clearance
• Wheel Nut Seating Profile

M12 x 1.25 Thread

These studs use an:

M12 x 1.25 Thread

Any wheel nuts being used must have the correct M12 x 1.25 thread.

The wheel nut seating profile must also match the wheel being fitted.

Different aftermarket wheels may require tapered, radius or flat-seat wheel nuts, so the correct nut should always be selected for the wheel rather than simply matching the thread size.

⚠️ Wheel Nuts Are Not Included

Unless specifically stated otherwise, this listing is for the extended wheel studs only.

Existing wheel nuts should only be reused if their thread, seating profile, dimensions and overall condition are suitable.

⚠️ Extended Stud Length

These are supplied as extended wheel studs, however a specific overall length or amount of additional length has not been stated in the supplied specification.

If your installation requires a particular minimum stud length, please confirm this before ordering.

Do not select wheel studs based solely on the M12 x 1.25 thread size.

Professional Installation Recommended

Wheel studs are safety-critical components and professional installation is strongly recommended.

The original studs must be removed and the replacements correctly installed into the hub without damaging the hub or stud splines.

During installation, check:

• Hub Condition
• Stud Seating
• Stud Spline / Knurl Compatibility
• Brake Component Clearance
• Wheel Clearance
• Spacer Fitment where applicable
• Wheel Nut Thread
• Wheel Nut Seating Profile
• Available Thread Engagement

The replacement studs must be fully and squarely seated against the hub.

⚠️ Press-In Stud Compatibility

Thread size alone does not determine whether a press-in wheel stud is compatible with a particular hub.

The stud's spline / knurl diameter, seating design and dimensions must also correctly match the K11 hub.

This is particularly important on vehicles fitted with:

• Brake Conversions
• Replacement Hubs
• Non-Standard Wheel Bearings / Hubs
• Motorsport Hub Assemblies
• Previously Modified Wheel Studs

Compatibility should be confirmed before installation.

Wheel Nut Torque

Wheel nuts should always be tightened to the correct specification using a calibrated torque wrench.

The wheel mounting hardware should also be inspected and rechecked after an appropriate initial bedding period following installation.

Never use damaged, cross-threaded or incorrectly seated wheel nuts.

What's Included?

• 20x Extended Wheel Studs
• M12 x 1.25 Thread

Enough studs are supplied for a complete K11 using the standard four-stud-per-wheel arrangement, with four additional studs available as spares.

Wheel nuts, wheel spacers and other wheel mounting components are not included unless specifically stated.

Compatibility

Designed for applicable:

Nissan Micra K11

Reference: 7618 Extended Wheel Studs

Please check compatibility before installation on vehicles with non-standard hubs or brake conversions.

Manufacturer Warranty

This product is supplied subject to the applicable manufacturer's warranty terms and conditions.

Wheel studs are safety-critical service components. Warranty does not normally cover damaged threads, incorrect installation, damaged hub splines, cross-threading, over-torquing, impact damage, unsuitable wheel/spacer combinations or use with incompatible wheel nuts.

GizFab Motorsport Developments is an independent aftermarket retailer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd. Nissan and Micra names are used solely for vehicle identification and compatibility purposes.
