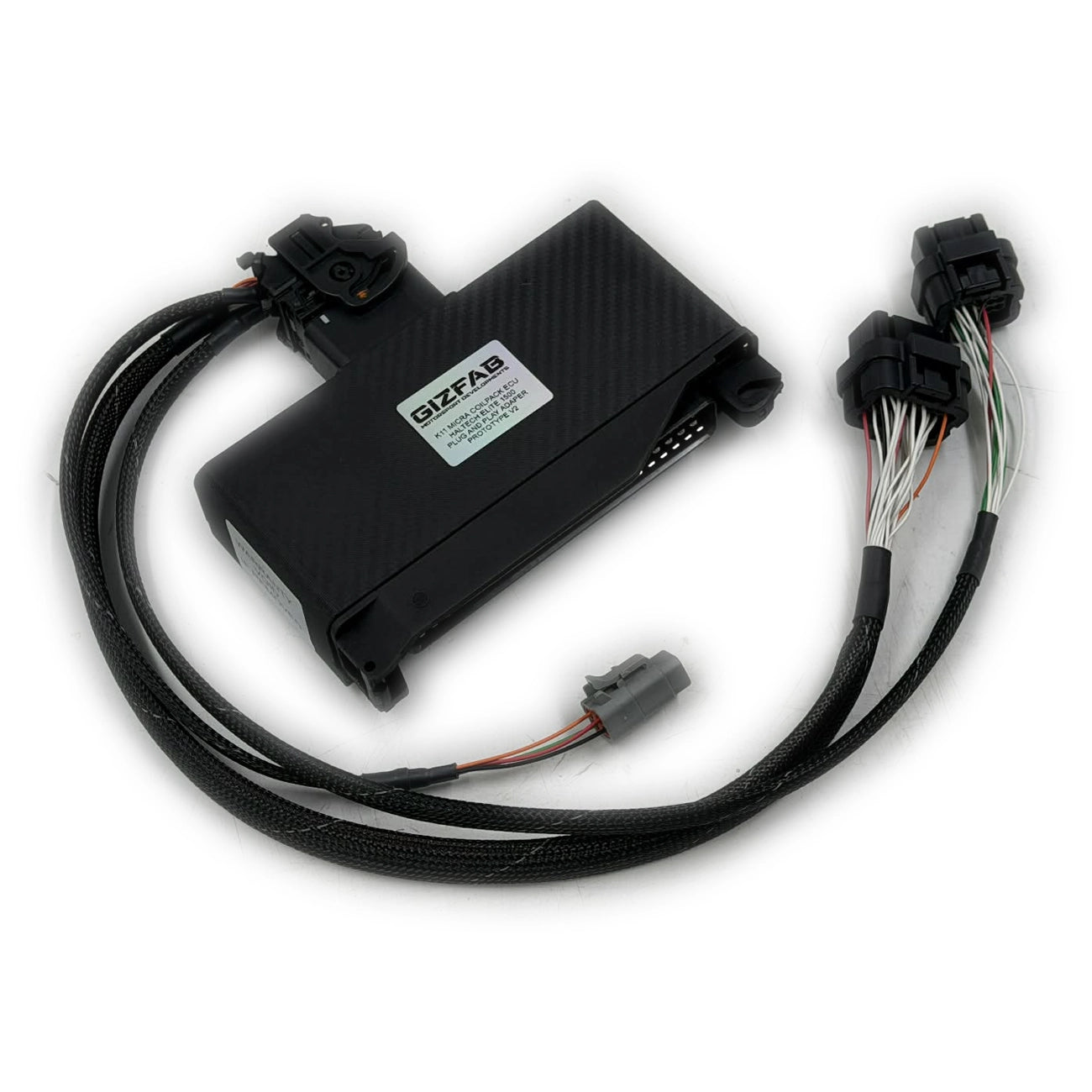

Nissan Micra K11 Coilpack Standalone ECU Adapter

Upgrade your Nissan Micra K11 Coilpack to aftermarket standalone engine management without cutting up the original engine loom.

Our purpose-built K11 Coilpack ECU Adapter uses a custom-designed PCB to interface directly with the factory Nissan ECU connector, providing a clean and professional starting point for installing a wide range of aftermarket standalone ECUs.

Ideal for naturally aspirated builds, turbo conversions, supercharger conversions, engine modifications and motorsport applications where the limitations of the original ECU need to be left behind.

Key Features

• Designed Specifically for Nissan Micra K11 Coilpack Models
• Custom-Designed PCB Adapter
• Connects Directly to the Factory ECU Loom Connector
• Allows Integration of a Wide Range of Standalone ECUs
• Avoids Cutting Up the Original Engine Loom
• Supplied with High-Quality Sub-Harness
• Clean & Professional Wiring Solution
• Ideal for Modified & Forced-Induction K11s
• 12-Month Warranty

Why Use an ECU Adapter?

Installing standalone engine management traditionally means either modifying the original engine loom or replacing significant portions of the factory wiring.

Our adapter takes a cleaner approach.

The custom PCB connects to the original K11 Coilpack ECU connector, breaking the required circuits out into a sub-harness that can then be integrated with your chosen standalone ECU.

This allows the factory engine loom to remain substantially intact while providing the installer with a much more convenient interface for the new engine management system.

Keep the Factory Loom Intact

One of the biggest advantages of the adapter is that it reduces the need to cut and permanently modify the original Nissan wiring loom.

This provides:

• Cleaner Installation
• Easier Fault Finding
• More Professional Wiring
• Reduced Permanent Modification to the Vehicle Loom
• Easier Future ECU Changes
• Simplified Standalone ECU Integration

For older vehicles such as the K11, retaining an organised and serviceable wiring system can make future maintenance considerably easier.

Wide Standalone ECU Compatibility

The adapter has been designed as an interface rather than being tied to one particular ECU manufacturer.

This means it can be used as the basis for installations involving a wide range of suitable aftermarket standalone engine management systems.

Final compatibility will depend on the capabilities, inputs, outputs and wiring requirements of the ECU being installed.

⚠️ THIS IS NOT AN ECU

This product is an ECU adapter board and sub-harness only.

It does NOT contain standalone engine management electronics and cannot control the engine by itself.

A suitable aftermarket ECU must be purchased separately.

⚠️ NOT A UNIVERSAL PLUG-AND-PLAY ECU CONVERSION

Although the adapter connects to the factory K11 ECU loom, the opposite end must still be correctly integrated with the aftermarket ECU being used.

Depending on your ECU and vehicle specification, installation may require:

• ECU-Specific Wiring
• Connector Termination
• Additional Sensors
• Additional Relays/Fuses
• Wideband Lambda Integration
• Boost Control Wiring
• Intake Air Temperature Sensor
• Additional Inputs/Outputs
• ECU Configuration
• Trigger Configuration
• Professional Calibration

The adapter simplifies the vehicle-side wiring interface. It does not eliminate the need to correctly install and configure the standalone ECU.

Compatibility

Designed for:

Nissan Micra K11 Models Equipped with Factory Coilpack Ignition

This adapter is specifically designed around the ECU connector and wiring arrangement used by the K11 Coilpack engine management system.

⚠️ NOT FOR DISTRIBUTOR / DIZZY K11s

The earlier Distributor/Dizzy K11 uses a different ECU and wiring arrangement.

Do not purchase this Coilpack adapter for a Distributor/Dizzy K11.

If the vehicle has undergone an engine or wiring loom conversion during its lifetime, compatibility should be determined from the actual ECU connector and loom fitted to the vehicle, rather than registration year alone.

Ideal for Modified K11s

Standalone engine management becomes particularly useful when the vehicle has moved significantly beyond the specification the original ECU was designed to control.

Typical applications include:

• Turbo Conversions
• Supercharger Conversions
• Larger Fuel Injectors
• Performance Camshafts
• Modified Naturally Aspirated Engines
• Motorsport Builds
• Alternative Fuels
• Custom Sensor Configurations
• Engine Conversions

The actual capabilities available will depend on the standalone ECU selected.

What's Included?

• 1x K11 Coilpack ECU Adapter PCB
• 1x High-Quality Sub-Harness

What's NOT Included?

Unless specifically stated otherwise:

• Standalone ECU
• ECU Connector/Terminations specific to your chosen ECU
• Base Map
• ECU Configuration File
• Calibration / Mapping
• Tuning Support
• Additional Sensors
• Wideband Controller
• Boost Control Solenoid
• Additional Relays or Fuse Boxes

⚠️ BASE MAPS & TUNING SUPPORT NOT INCLUDED

This product is intended for customers or installers who are capable of installing and configuring their chosen standalone ECU system.

No base map, calibration file or tuning support is included with the adapter.

The engine must not be operated under load without appropriate ECU configuration and calibration.

Incorrect trigger configuration, ignition timing, fuelling or other ECU settings can result in severe engine damage.

Professional Installation Recommended

Standalone engine management installation should be carried out by somebody experienced with automotive electrical systems and aftermarket ECU configuration.

Before attempting to start the engine, the installer should verify all relevant circuits against the vehicle and ECU requirements.

Particular attention should be given to:

• ECU Power & Grounds
• Sensor Grounds
• Crank/Cam Trigger Inputs
• Ignition Outputs
• Injector Outputs
• Fuel Pump Control
• Sensor Supply Voltages
• Polarity
• Shielding
• Pin Assignments
• Fusing
• Relay Control

Never assume wire function based solely on colour. Verify circuits and pin assignments before connecting the standalone ECU.

ECU Calibration Required

Once installation is complete, the ECU must be correctly configured and professionally calibrated for the individual engine.

An ECU adapter does not provide additional horsepower by itself.

It simply provides the wiring interface required to install engine management capable of controlling a modified engine correctly.

Motorsport / Modified Vehicle Use

This product is intended primarily for modified vehicle, engine conversion and motorsport applications.

The purchaser and installer are responsible for ensuring the completed installation and vehicle comply with any regulations applicable to its intended use.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover incorrect wiring, incorrect ECU configuration, reverse polarity, short circuits, excessive voltage/current, water ingress, modification of the PCB, incorrect installation, engine damage, tuning/calibration errors or failure of third-party ECUs, sensors or electrical components.

The warranty applies to the supplied GizFab adapter PCB and sub-harness only. It does not cover aftermarket ECUs, engines, tuning, labour, diagnostics, removal/refitting costs or consequential damage.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd. References to third-party ECU manufacturers are for compatibility identification purposes only.
