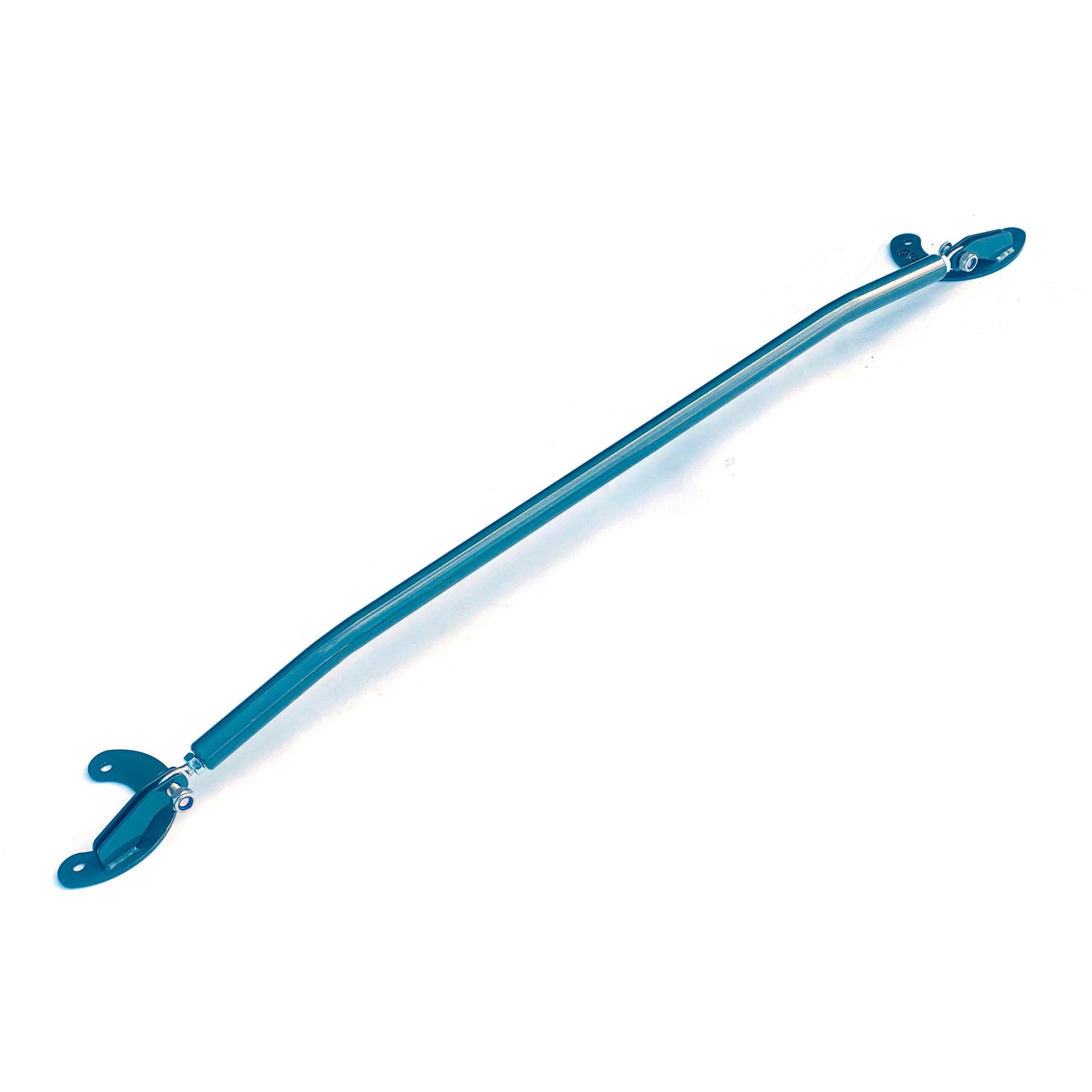

Nissan Micra K10 Front Upper Brace

Designed and manufactured by GizFab, our Nissan Micra K10 Front Upper Brace is designed to increase rigidity across the front of the K10 chassis by linking the two front upper suspension mounting points together.

By providing a rigid connection across the front suspension towers, the brace helps reduce unwanted chassis movement and provides a more stable platform for the suspension to work from.

A simple and effective chassis upgrade for fast-road, track and competition-focused K10 Micras.

Key Features

• Designed & Manufactured by GizFab
• Designed for the Nissan Micra K10
• Links the Front Upper Suspension Mounting Points
• Increased Front-End Chassis Rigidity
• Improved Suspension Feedback
• More Positive Front-End Response
• Ideal for Handling-Focused & Competition Vehicles
• Bolt-On Chassis Upgrade
• 12-Month Warranty

Why Fit a Front Upper Brace?

During cornering, braking and changes of direction, loads from the front suspension are transferred into the vehicle through the upper suspension mounting points.

The K10 uses a conventional front strut arrangement, with separate left and right upper strut mounting points within the body shell.

Like any vehicle chassis, the body shell has a degree of flexibility. A front upper brace creates an additional connection between these suspension mounting areas, helping reduce relative movement between them.

Providing a more rigid platform for the suspension to operate from can help provide:

• Improved Front-End Response
• More Direct Steering Feedback
• Increased Chassis Rigidity
• More Consistent Suspension Behaviour
• Improved Feel During Direction Changes

The effect will depend on the condition and overall specification of the vehicle.

Ideal for a Handling-Focused K10

The Front Upper Brace is particularly suited to K10s already fitted with performance suspension and chassis upgrades such as:

• Coilovers
• Lowering Springs
• Performance Dampers
• Uprated Suspension Bushes
• Performance Tyres
• Anti-Roll Bar Upgrades
• Additional Chassis Bracing

As suspension and tyre performance increases, providing the suspension with a rigid and consistent mounting platform becomes increasingly worthwhile.

Installation

The brace is designed as a bolt-on chassis reinforcement component.

Installation should be carried out by a suitably qualified professional.

Given the age of the K10 chassis, we strongly recommend inspecting the suspension mounting areas and surrounding bodywork before installation.

Check carefully for:

• Corrosion
• Cracking
• Accident Damage
• Distortion
• Previous Chassis Repairs
• Damaged Mounting Hardware

The brace must not be used to pull damaged or incorrectly positioned suspension mounting points back into alignment.

All mounting hardware should be correctly tightened before the vehicle is used and periodically inspected thereafter.

Modified Vehicle Compatibility

The brace is designed around the Nissan Micra K10 platform.

However, due to the age of these vehicles and the number that have undergone engine conversions or other modifications, clearance cannot be guaranteed with every possible aftermarket configuration.

Vehicles with non-standard engines, intake systems, engine mounts or other substantial engine-bay modifications should be checked for adequate clearance during installation.

Important Safety Information

This product is a chassis reinforcement component only.

It is not a roll cage, harness bar or structural safety device and must not be used as an anchorage point for harnesses, seat belts or other safety equipment.

Motorsport & Off-Road Use Only

This product is intended for motorsport and off-road use only and is not intended for use on public highways.

Installation should be carried out by a suitably qualified professional.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover cosmetic deterioration, corrosion resulting from inadequate maintenance, incorrect installation, modification, accident or impact damage, misuse or damage resulting from defective or damaged surrounding chassis or suspension components.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
