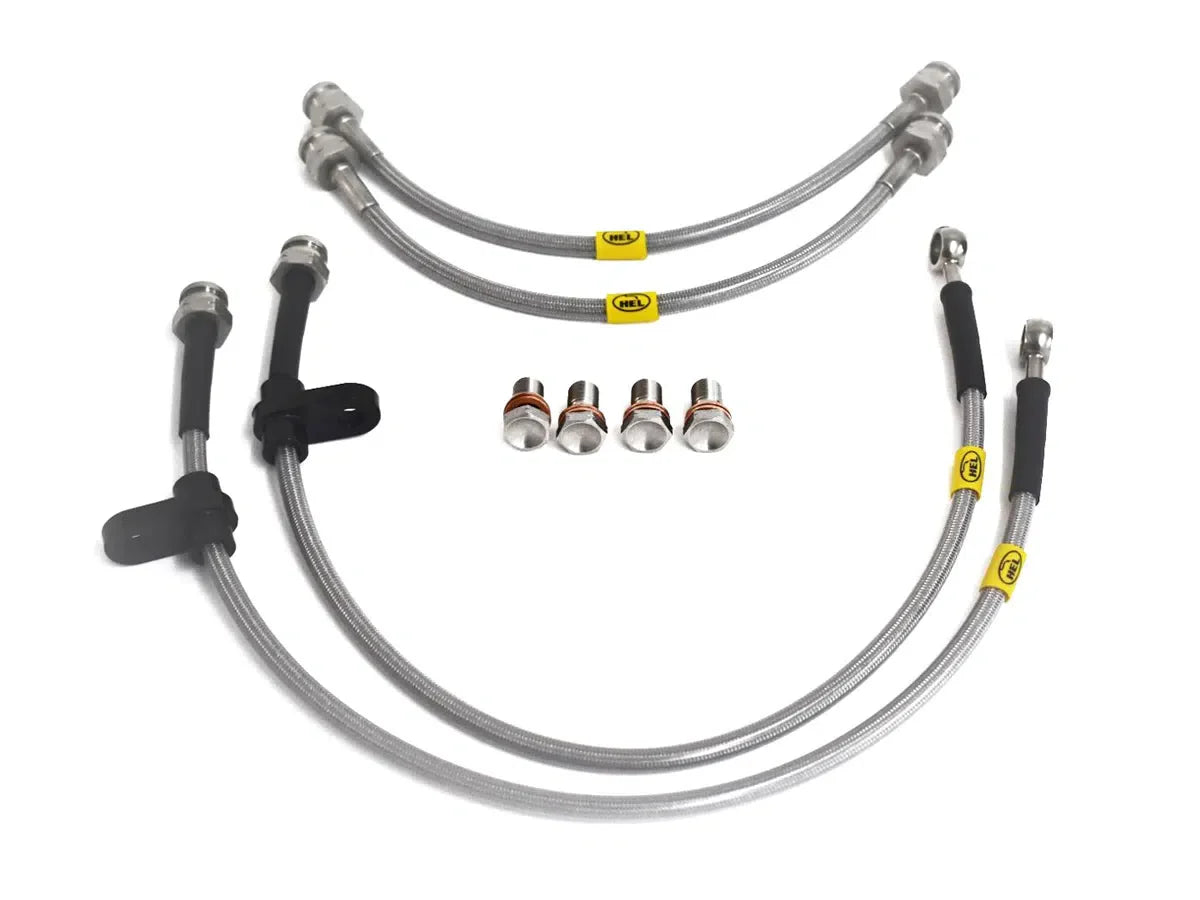

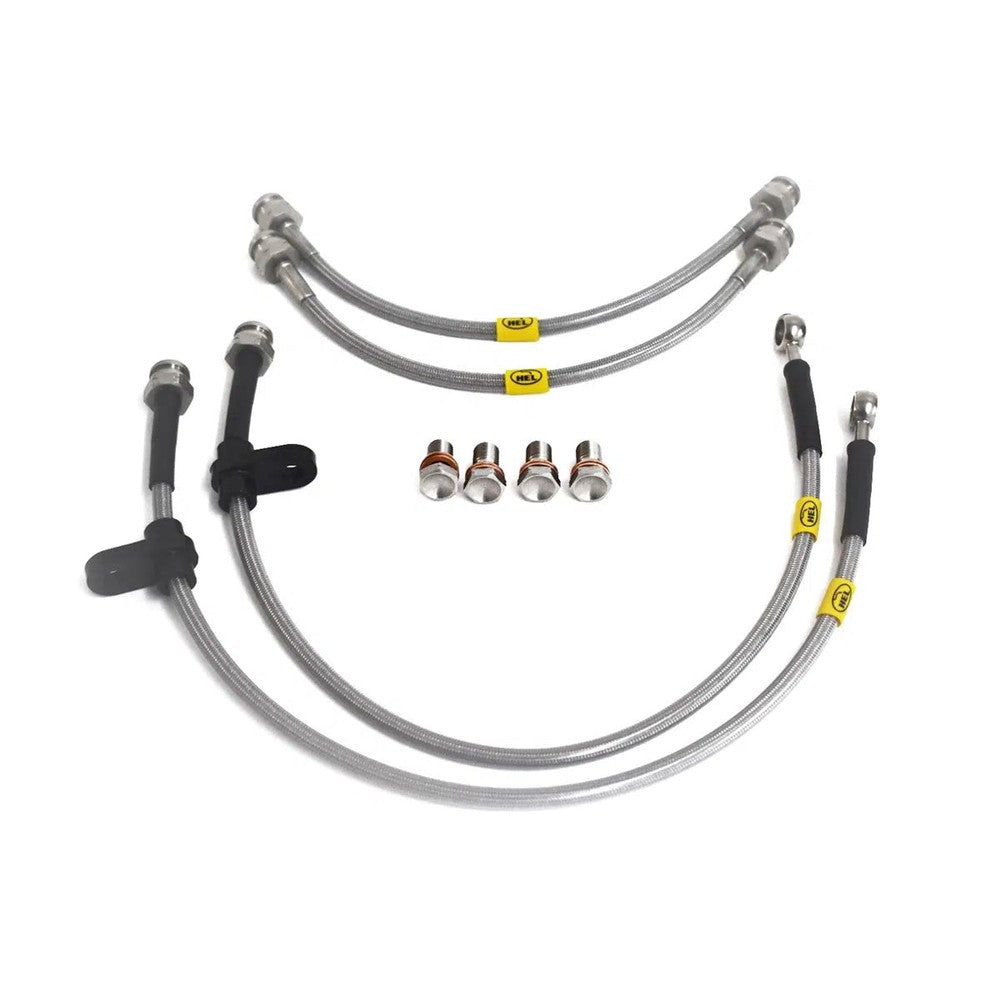

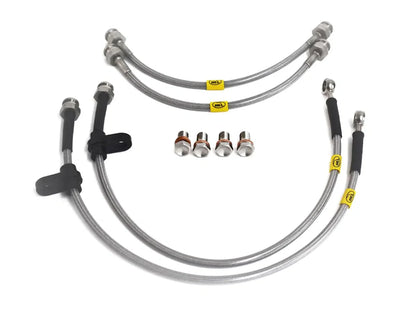

Nissan Micra K10 HEL Performance Braided Brake Hoses

Upgrade the braking system on your Nissan Micra K10 with a vehicle-specific HEL Performance Stainless Steel Braided Brake Hose Kit.

Designed as a replacement for the original flexible rubber brake hoses, HEL braided lines use a PTFE inner hose surrounded by high-tensile stainless steel braid, helping reduce hose expansion under braking pressure and providing a firmer, more consistent brake pedal feel.

An ideal upgrade for road, fast-road, restored and competition K10s.

Key Features

• Designed for the Nissan Micra K10
• Replacement for the Factory Flexible Brake Hoses
• Stainless Steel Braided Construction
• PTFE Inner Hose
• Stainless Steel 303/304 Fittings
• Protective PVC Outer Cover
• Helps Reduce Brake Hose Expansion
• Firmer & More Consistent Brake Pedal Feel
• Excellent Corrosion Resistance
• Choice of Hose Colours
• Suitable for Road & Motorsport Applications
• HEL Performance Lifetime Warranty

Why Upgrade to Braided Brake Hoses?

The original K10 braking system uses flexible rubber hoses between the vehicle's rigid brake pipes and moving brake components.

Rubber provides the flexibility required as the suspension and steering move, but flexible hoses can expand slightly as hydraulic pressure increases.

This expansion can contribute to a softer or more "spongy" brake pedal feel, particularly with older hoses or during repeated heavy braking.

HEL Performance braided brake hoses use a PTFE inner hose reinforced with high-tensile stainless steel braid.

The stainless braid helps resist expansion as hydraulic pressure increases, providing a more direct transfer of pedal input through the hydraulic braking system.

The result is a firmer and more consistent brake pedal feel.

Particularly Relevant for the K10

Given the age of the Nissan Micra K10, the condition of the complete braking system should be carefully considered when restoring, maintaining or modifying the vehicle.

Old flexible brake hoses can deteriorate internally and externally over time, even where the outside of the hose initially appears serviceable.

A braided hose kit provides an opportunity to replace ageing flexible hoses while simultaneously upgrading their construction.

The condition of the vehicle's rigid brake pipes, master cylinder, calipers, wheel cylinders and other hydraulic components should also be inspected when carrying out brake system work.

Ideal for Modified & Competition K10s

HEL braided brake hoses are particularly well suited to K10s used for:

• Road & Daily Use
• Fast-Road Driving
• Restoration Projects
• Track Days
• Sprint & Hillclimb
• Autograss
• Motorsport & Competition
• Performance Brake Conversions

Stainless Steel Fittings

HEL Performance uses 303/304 stainless steel fittings, providing excellent resistance to corrosion in an area continually exposed to water, road dirt and the general underbody environment.

The hose construction combines:

PTFE Inner Hose → Stainless Steel Braid → Protective PVC Outer Cover

providing a durable flexible brake hose suitable for both road and demanding motorsport environments.

OEM Replacement Fitment

The hoses are manufactured as vehicle-specific replacements for the original Nissan Micra K10 flexible brake hoses, rather than being generic universal brake lines.

As K10s are now older vehicles and may have been modified during their lifetime, we recommend confirming that the braking system remains in the expected configuration before installation.

What's Included?

Depending on the requirements of the specific K10 application, the kit includes:

• HEL Stainless Steel Braided Brake Hoses
• Stainless Steel Banjo Bolts where required
• Copper Crush Washers where required
• HEL Lifetime Warranty Keyring Fob
• Installation Leaflet

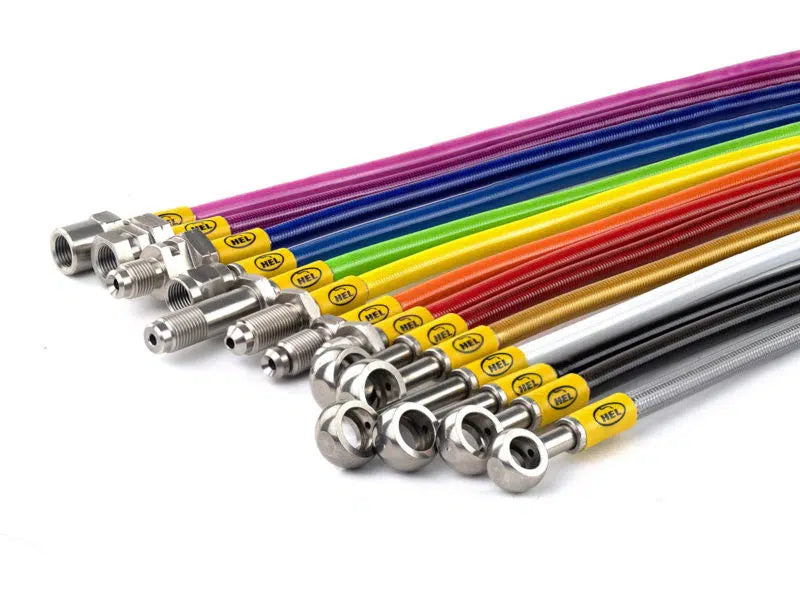

Choice of Hose Colour

HEL Performance brake hoses are available with a choice of protective outer hose colours.

Simply select your preferred colour from the available options when ordering.

Technical Specifications

Brake Pedal Feel vs Stopping Distance

Braided brake hoses primarily improve hydraulic consistency and pedal feel by reducing expansion within the flexible hoses.

They do not create additional braking force by themselves and should not be considered a guaranteed method of reducing stopping distances.

Actual braking performance depends on the complete vehicle and braking system, including:

• Brake Pads
• Brake Discs
• Calipers & Wheel Cylinders
• Brake Fluid
• Master Cylinder
• Tyres
• Suspension
• Vehicle Weight
• Road or Track Conditions

For the best results, braided hoses should form part of a correctly maintained and appropriately matched braking system.

Professional Installation Recommended

Brake components are safety-critical and should be installed by a suitably qualified professional.

Given the age of the K10 platform, we particularly recommend inspecting the condition of the rigid brake pipes, hose mounting points and surrounding components during installation.

Following installation, the braking system must be correctly bled using suitable brake fluid and thoroughly inspected for leaks.

Before using the vehicle, ensure:

• All Connections are Correctly Tightened
• Brake Hoses are Correctly Routed
• Hoses Cannot Rub or Chafe
• Full Steering Movement Does Not Stretch the Hoses
• Full Suspension Travel Does Not Stretch or Trap the Hoses
• There are No Brake Fluid Leaks
• The Brake Pedal is Firm & Consistent

The complete braking system should be inspected again after an initial period of use.

HEL Performance Lifetime Warranty

HEL Performance supplies these brake hoses with a Lifetime Warranty, subject to the manufacturer's applicable warranty terms and conditions.

Warranty eligibility and claims remain subject to HEL Performance's current warranty policy.

Certification

HEL Performance brake hoses are manufactured and tested to recognised automotive brake hose standards.

Certification and approval requirements can vary between countries and jurisdictions, so customers requiring a particular approval or certification should confirm that the specific K10 kit meets their local requirements before purchase or installation.

Manufacturer Disclaimer

HEL Performance is a third-party manufacturer. GizFab Motorsport Developments is an independent retailer and is not affiliated with, sponsored by or endorsed by HEL Performance or Nissan Motor Co., Ltd.

All warranties, certifications and approvals relating to HEL Performance components remain subject to the manufacturer's applicable terms and conditions.
