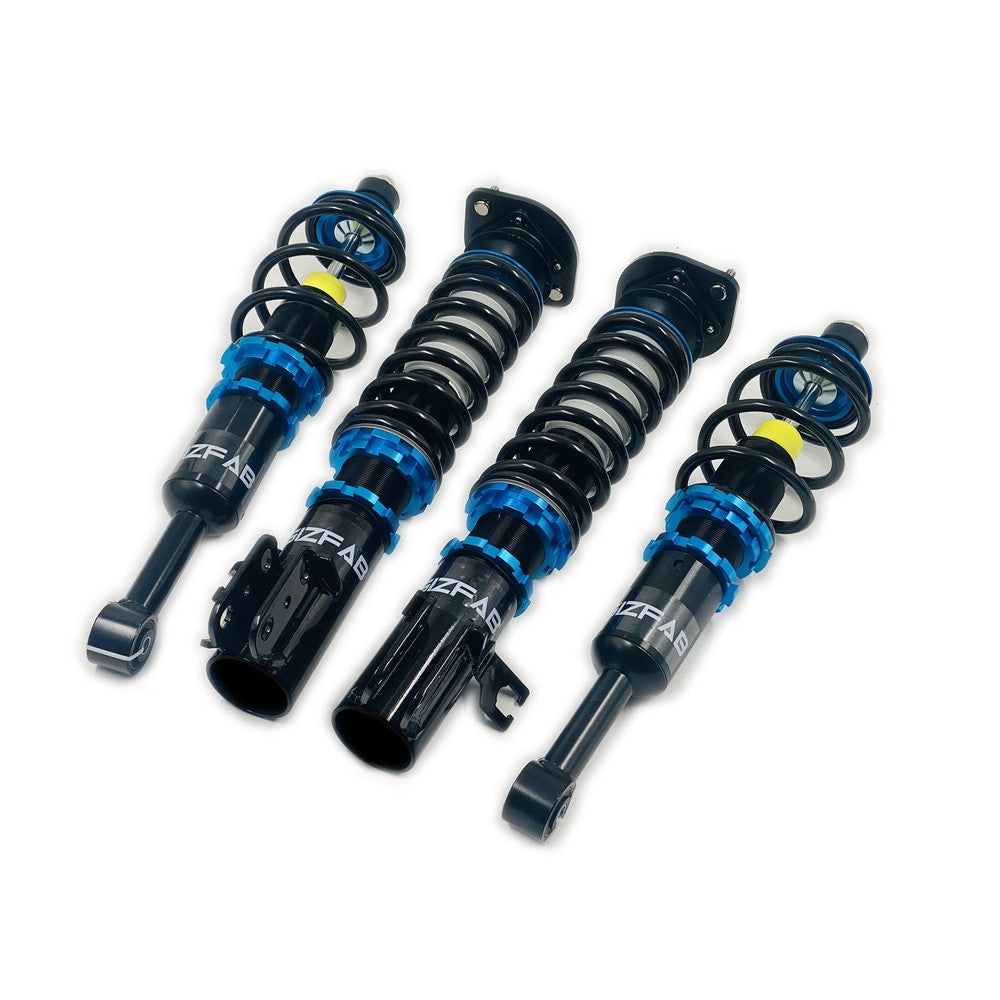

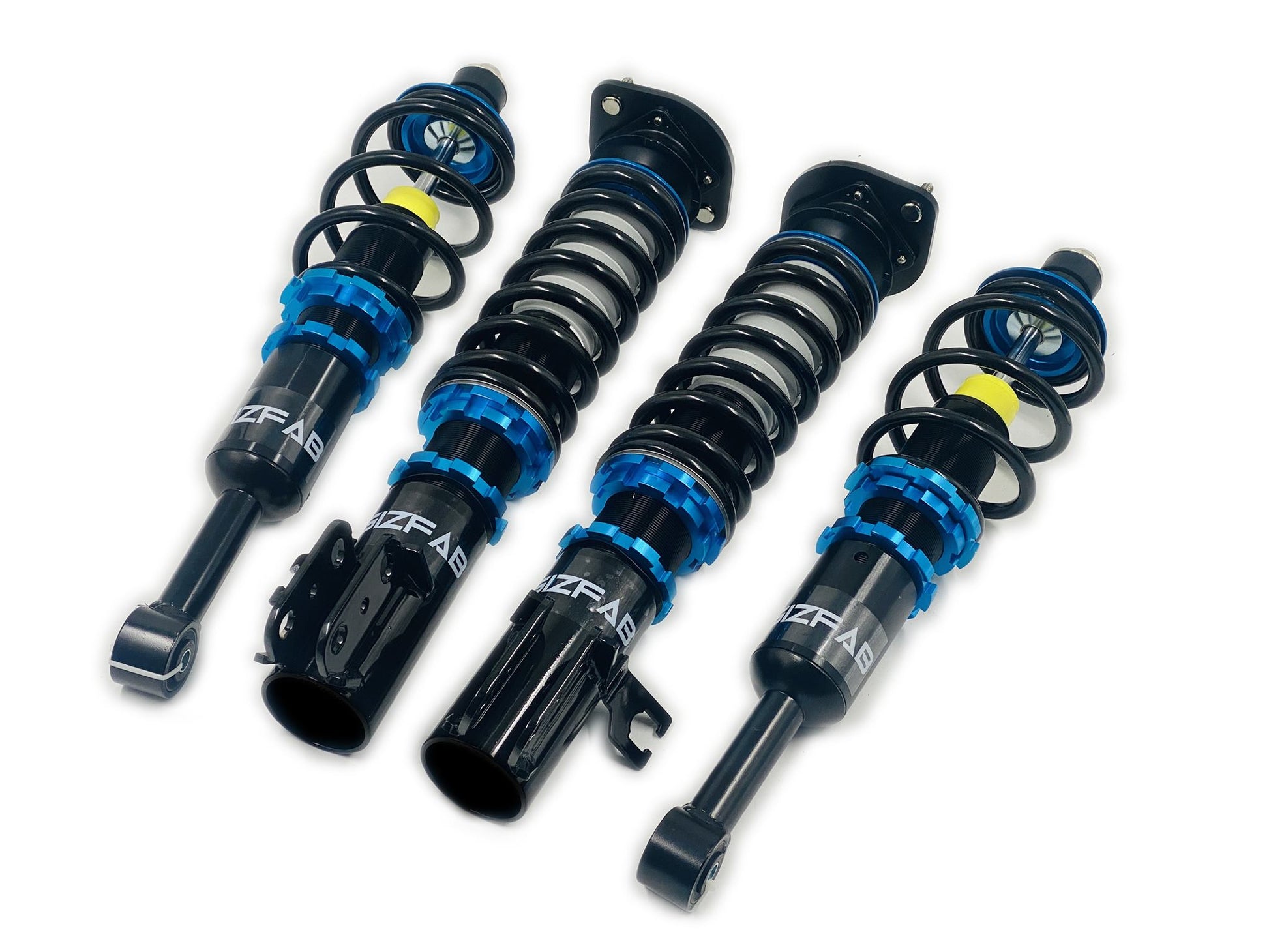

Nissan Micra K10 Adjustable Coilovers

Developed as GizFab's own coilover solution for the Nissan Micra K10 chassis, these adjustable coilovers provide a substantial upgrade over the factory suspension, offering improved body control, handling and adjustability.

The kit combines a monotube damper design, adjustable ride height and 32 levels of damping adjustment, allowing the suspension to be fine-tuned to suit the vehicle, road conditions and driver preference.

Supplied with 5kg/mm front and 2.5kg/mm rear spring rates, the kit has been specified to provide improved chassis control without resorting to excessively stiff spring rates, making it suitable for road and fast-road K10 builds.

Features

• GizFab Specification K10 Coilover Kit
• Monotube Damper Design
• 5kg/mm Front Spring Rate
• 2.5kg/mm Rear Spring Rate
• 32 Levels of Damping Adjustment
• Adjustable Ride Height
• Springs Manufactured to SAE 9254 Standard
• Developed Specifically for the Nissan Micra K10 Chassis
• Suitable for Road & Fast-Road Applications
• 12-Month Warranty*

5F / 2.5R Spring Rates

The K10 kit is supplied with 5kg/mm front and 2.5kg/mm rear spring rates.

We have selected these rates to provide a noticeable improvement in suspension control while retaining a sensible balance for vehicles which continue to see regular road use.

The increased spring rates help reduce excessive body movement during cornering, braking and acceleration, giving the K10 a more responsive and controlled feel.

As with any performance suspension upgrade, ride quality will be firmer than the original factory suspension.

32-Way Damping Adjustment

The dampers feature 32 levels of adjustment, allowing the damping characteristics to be altered to suit different driving conditions and preferences.

This provides considerably more flexibility than a fixed-rate damper and allows the suspension setup to be adjusted as the vehicle or its intended use develops.

Adjustable Ride Height

Ride height can be adjusted to achieve the desired vehicle stance and suspension setup.

When lowering the vehicle, consideration should be given to available suspension travel, tyre clearance, ground clearance and suspension geometry. Excessive lowering can negatively affect both handling and available damper travel.

Installation & Setup

Professional installation is strongly recommended.

Following installation or any significant change in ride height, the vehicle should receive a full wheel alignment to ensure the suspension geometry is correctly set.

Depending on the desired ride height and vehicle specification, additional suspension or geometry components may be required.

12-Month Warranty*

This product is warranted to the original purchaser against defects in materials and workmanship for a period of 12 months from purchase.

Our obligation under this warranty is limited to repair or replacement, at our discretion, where inspection confirms a manufacturing or material defect.

The warranty does not cover normal wear and tear, corrosion resulting from inadequate maintenance, accident or impact damage, misuse, incorrect installation, modification, or damage resulting from operating the suspension outside its intended adjustment range.

Coilovers are exposed to water, road salt and other contaminants during normal use and should be regularly cleaned and maintained, particularly during winter use, to prevent corrosion and ensure the adjustment mechanisms remain serviceable.

GizFab Motorsport Developments is an independent aftermarket manufacturer and is not affiliated with, sponsored by, approved by or endorsed by Nissan Motor Co., Ltd.
